5 Circuits Through Bore Electrical Slip Ring IP64 and 200 Million Turns Long Life
5 Circuits Through Hole Slip Ring with IP64 and 200 Million Turns Long Service Life Transferring Power and Signal
Description
The LPT020-0316-02S through bore slip ring is designed with special contact structure. Distinguishing itself from common slip ring adopting brush wire, the new slip ring employs plate sheet and brush block in its contact.Plate sheet have gone through a special technique. The part includes 3 circuits for power transmission and 2 circuits for signal transferring. The plate sheet, brush block and copper ring together build a superb contact for the rotating transmission, which accordingly promotes its service life.

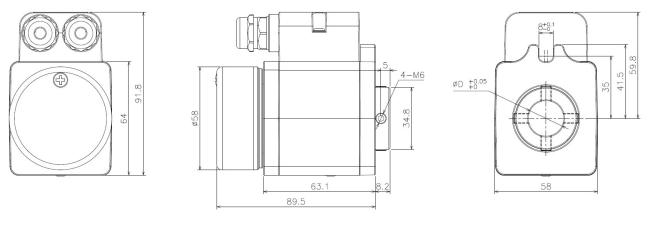

Outline Drawing
Specification
| Specifications | |
| Operating Speed | 0-500 rpm |
| Circuits | 5 |
| Voltage | 48/ 240 VAC/DC |
| Rated Current | 5/16 A per circuit |
| Temperature Range | -20℃ to +80℃ |
| Humidity | 90%RH |
| IP | IP64 |
| Lead Length | Stator:300mm Rotor:300mm |
| Dielectric Strength |
≥1000V@50Hz (P) 500V@50Hz (S) |
| Insulation Resistance |
1000MΩ@500VDC(P) 500MΩ@300VDC(S) |
| Inner Diameter | ∅25 |
| Contact | Copper/Silver Graphite |
| Housing | Engineering Plastic |
| Torque | ＜0.15N.m |
| Wire Connection | Terminal/ Stud |
| Life | 200 million turns |

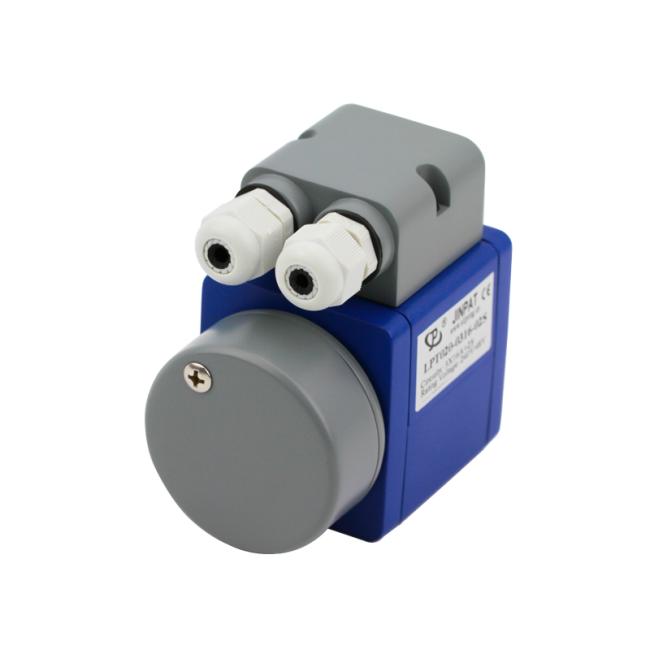

Product Display
