The LPT000-0720-0203-52S-2E3-HD02-02A integrated slip ring is an initiated stacked unit in domestic industry, transmitting various signals, such as strong current, Gigabit Ethernet, RS422, Rotary transformer signal, Excitation signal, SPL video signal, and HD-SDI, as well as gas and liquid at one time.Three parts of gas/liquid, strong electric signal, and weak electric signal are transmitted independently with high reliability. Besides stable transmission of 1080P@30Hz HD video signal, it can also adapt to harsh working environment with wide working temperature range(-40~+70℃). It has been perfectly used for military electro-optical radar in remote-controlled liquid cleaning, air drying, and video surveillance, etc.
Specification
| Electronic & Electric | Mechanical | |||
| Circuit | 7 *20A+2 *3A+52 *signal +2 pairs*Gigabit Ethernet+1 *Ground+2pairs*SPL video signal +2 *gas/liquid | Working Speed | 0～100 rpm | |
| Inner Diameter | / | |||
| Working Voltage |
Power:220V Signal:24V |
Contact | Precious Metal | |
| Dielectric Strength |
≥500VAC@50Hz(current) ≥300VAC@50Hz(signal) |
Housing | Aluminum Alloy | |
| Insulation | ≥300MΩ@500VDC | Wire Size | RG179 coaxial wire | |
| Environment | Remark | |||
| Working Temperature | -40°C～+70°C | Application | Military Photoelectric Radar, Automation | |
| Working Humidity | ≤70%RH | Life | ≥10 million turns | |
| IP | IP54 | Other | / | |
|
SPL Video Signal Rotary Joint |
|
|||
| Working Temperature | -40°C～+70°C | Working Pressure | 0-1.2MPa | |
| Working Speed | 0～100 rpm | Media | Compressed Air/ Washing Liquid | |
| Circuit | 2 pairs | Channel | 2 channels | |
| Resolution | 1080P, 30Hz | Connection Caliber | 1/8 | |
| Wire Size | RG179 coaxial wire | Pipe Size | Φ 6 | |
| Electrical Noise | ≤35mΩ | Connector Type | 1/8 | |

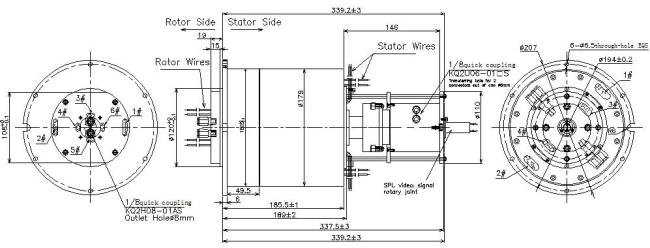

Outline Drawing
