5 Circuits Capsule Slip Ring With 5VAC Voltage
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
2 weeks ARO
Brand:
JINPAT
Product Description
5 Circuits Capsule Slip Ring with 5VAC Voltage and Wide Working Temperature Range
LPC-06AT-05 can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.
It provides an economical, readily available solution when a compact through-bore configuration is required. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, lifetime operation.
Specification
| Circuits | 5circuits *1A |
| Working Voltage | 5 VAC/DC |
| Dielectric Strength | Between circuits≥50VAC@50Hz |
| Insulation | 10MΩ@100VDC |
| Electrical Noise | ≤0.01Ω |
| Working Speed | 0~300 rpm |
| Contact | Precious Metal |
| Housing | Engineering Plastic |
| Wire Size |
Rotor:φ0.6mm AWG32# Stator:φ0.4mm AWG32# |
| Wire Length |
Rotor:327±5mm Stator: 80±5mm |
| Temperature | -30°C~+80°C |
| Humidity | ≤60%RH |
| IP | IP54 |

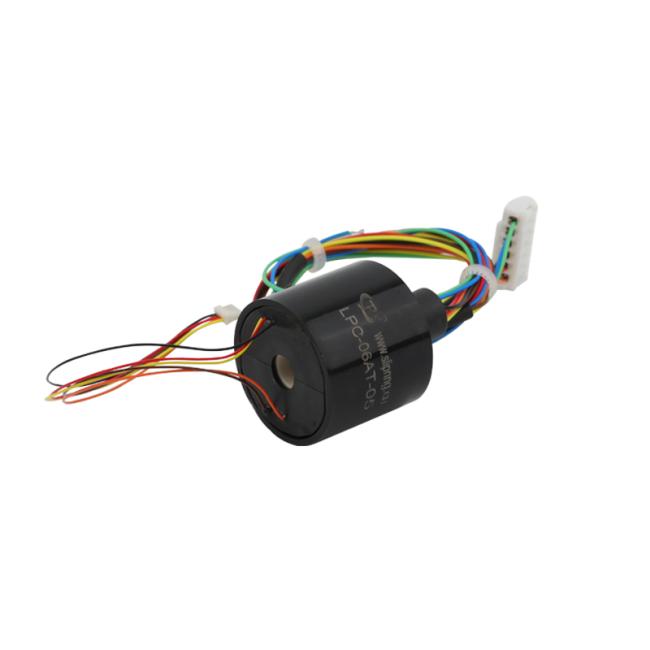

Product display
Product application
