6 Circuits Slip Ring LPMS-06B 300RPM 240VAC
Description

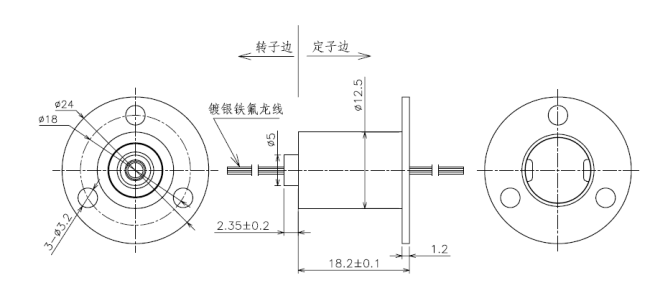

LPMS-06B slip rings are small and compact with capsule length 18.2mm with capsule style, standard, off-the-shelf.
Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
Using a 90° V-groove ring design for each ring.
These slip rings are manufactured by utilizing premium grade metal-alloys using the edge-cutting technologies with the help of our deft team members. The offered slip rings are assembled in varied mechanical components to increase the rate of power transmission.
The family of these compact sling ring capsules permits enormous versatility in dealing with the size requirements of systems when there are no bigger models available.
| Specifications | |
| Operating Speed | 300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | 500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Protaction Class | IP54 |
