Inner Diameter 25.4mm Through Bore Slip Ring Aluminum Alloy Housing

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 2 weeks ARO

Brand: JINPAT

Product Description

Inner Diameter 25.4mm Through Bore Slip Ring Aluminum Alloy Housing

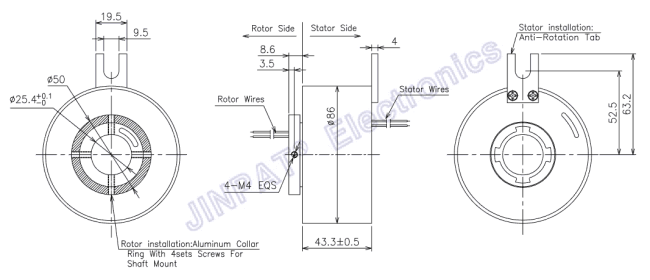

LPT025-0605 through hole slip ring features 6 circuits routing 5A per wire.This compact slip ring has 25.4mm bore size for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.

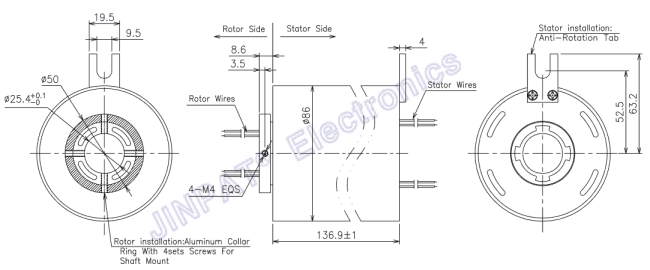

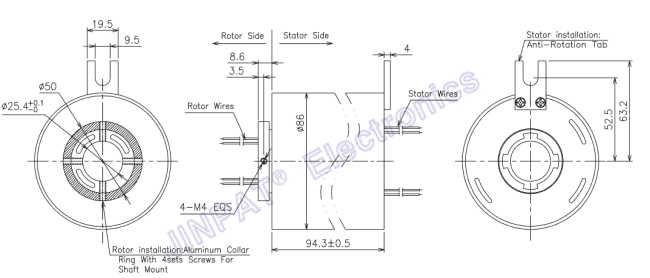

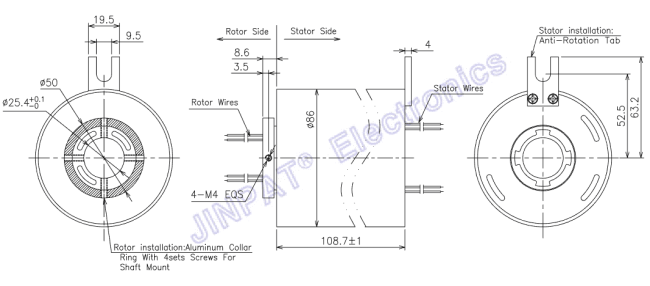

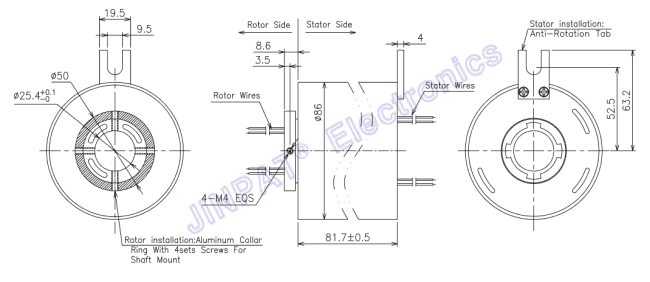

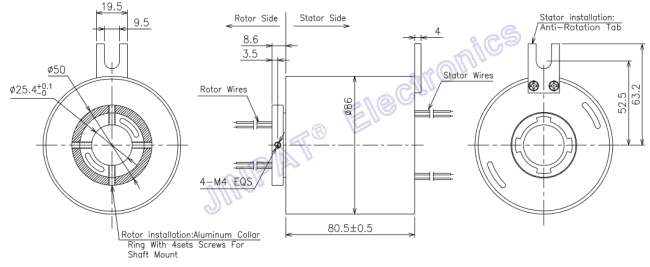

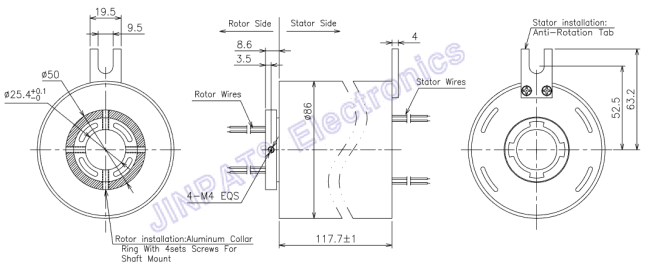

It provides an economical, readily available solution when a compact through-bore configuration is required. LPT025 series through bore slip ring ,the 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, life time operation.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300rp
	Detail	6X5A	Inner Diameter	Φ25.4mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH
