Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 2 weeks ARO

Brand: JINPAT

Product Description

Aluminum Alloy Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

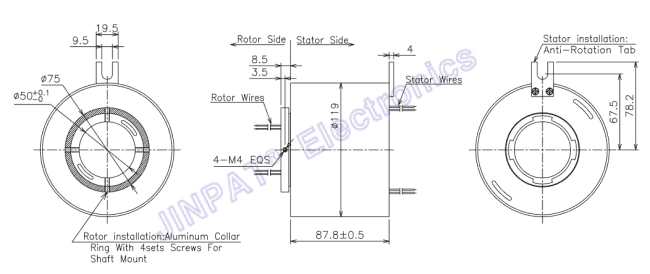

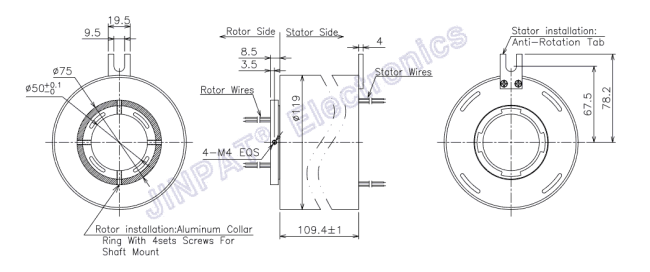

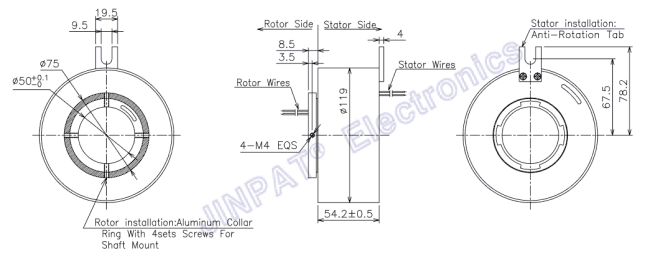

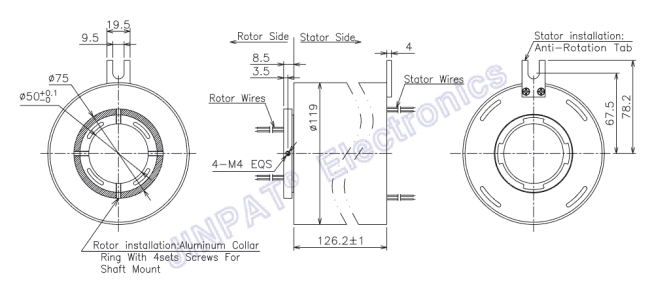

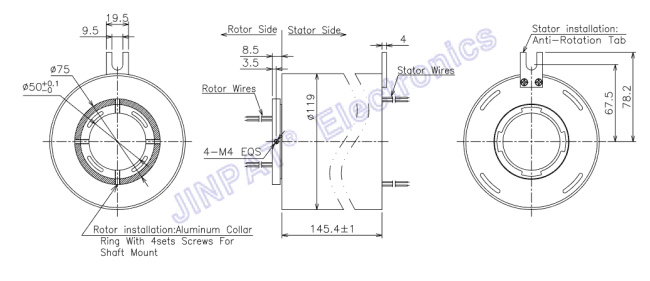

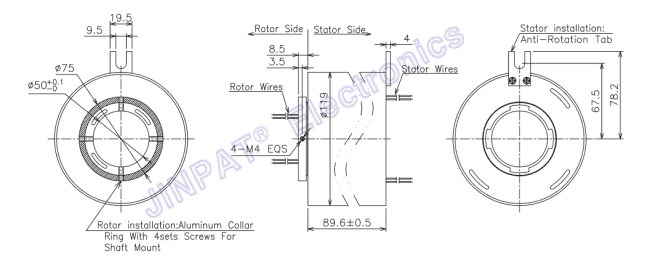

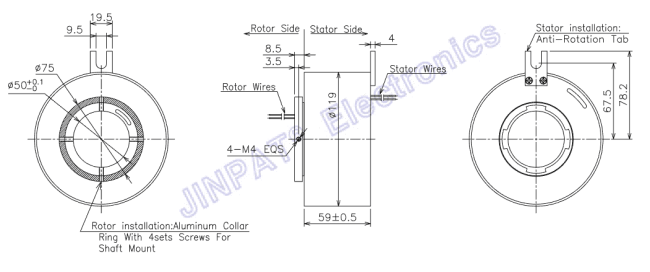

LPT050 Series Slip Ring with Through Bore 50mm

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPT050 uses JINPAT fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact friction per fiber and low contact wear rates. In addition,
fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300rp
	Detail	6X5A	Inner Diameter	Φ50mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH
