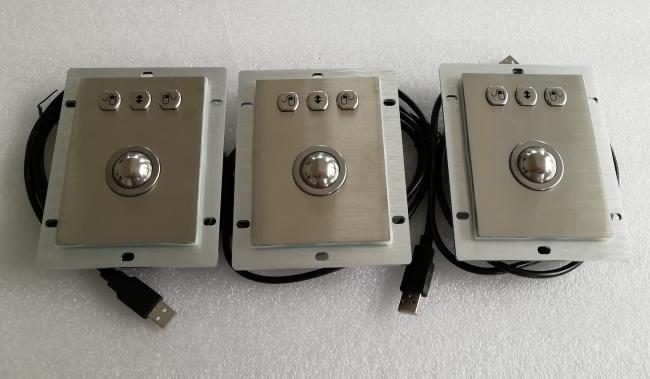

3 Buttons Panel Mount Trackball
3 Buttons IP65 Mounted Rugged Industrial Computer Mouse Stainless Steel Lightweight
Metal Trackball Mouse is widely used in many industrial areas, including military/security, marine, medicial gas station and others.
KH-M25-80
Dimension: 80 x110mm(Front Panel)
PRODUCT SPECIFICATION -
> Metal panel and keys design with laser trackball and 3 buttons designed for right, left and scrolling keys
> All metal machinery provide for rugged, smooth, long lasting and no noisy operation.
> Be strictly according to IP65 regulation for Water-proof, dust-proof, vandal-resistant proformance
> USB and PS/2 connectors are optional
> Rugged construction to ensure high vandal resistance
> Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.
APPLICATION -
Mainly Using the existing mouse driver and mouse software Interfaces for most workstations and computers. It’s meet NEMA 4, 4X and IP65
specifications, making them vandalproof, resistant to dust, dirt, water and corrosive liquids.
TECHNICAL DATA -
> Mechnical Data
|
Key Travel |
2.0mm |
|
Switch Life |
>1 million of per key |
|
Trackball lifespan |
>1 million revolutions |
> Electrical Data
|
Supply Voltage |
5.0V DC±5% |
|
Work Current |
10mA |
|
EMC Standard |
EN55022(B) |
> Environmental Adaptability
|
Operating temperature |
-20°C to +60°C |
|
Storage temperature |
-40°C to +80°C |
|
Operating RH |
20-95% |
|
Atmospheric pressure |
60-106Kpa. |
> Reliability
|
Compliant Standard |
RoHS , CE and FCC |
|
Protection Level |
IP65(front panel) |
|
Vandal resistant |
IK10 |
|
Key Lifespan |
>1 million actuation |
|
MTBF |
>50000H |
|
MTTR |
<30min |
PACKING:
According to Factory Standard Package and followed Export Packing.
WHY CHOOSE US?
> Taking a prossional R&D team with over 10 years same industrial experience members
> Fast and suitable solution provied for customers
> Short lead time: ONLY 1-2 weeks lead time from confirming design to develop to finish products
> Strict QC system and inspection in each steps
> High quality assurance(CE, ROHS, FCC,IP65,IP67 Certificates)
> Customized item with MOQ in 1 set
> OEM and ODM are available
