Industrial trackball module, stable performance and well compatible

Product Description


1. IP65 performance of water proof, dust proof and vandalism proof.

2. 25mm trackball module, stable performance of USB, PS2

3. Use most stable and high-compatible MCU controller.

4. Resolution can be adjust from 800 dpi to 1600 dpi

5. Integrated 2/3 click buttons/extended additional buttons are available

6. Stable performance and well compatible with windows, mac or linux, and industrial control OS.

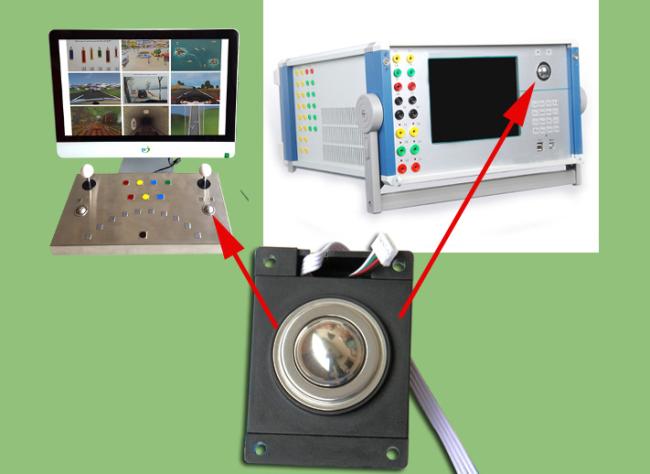

MAIN APPLICATION:

• This trackball emulates most popular mouse - uses existing mouse driver and mouse software Interfaces for most workstations and computers. It’s meet NEMA 4, 4X and IP 65 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids

TECHNICAL SPECIFICATION:

• Material : stainless steel ball

• Track ball lifespan >10 Mio revolutions

• N.W.:0.3 KGs

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C

• Storage temperature: -30°C to +70°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• RoHS Compliant, CE and FCC

• Protection Level: IP65(front panel)

• Vandal resistant: IK10

• MTBF >5,0000H

• MTTR <30min
