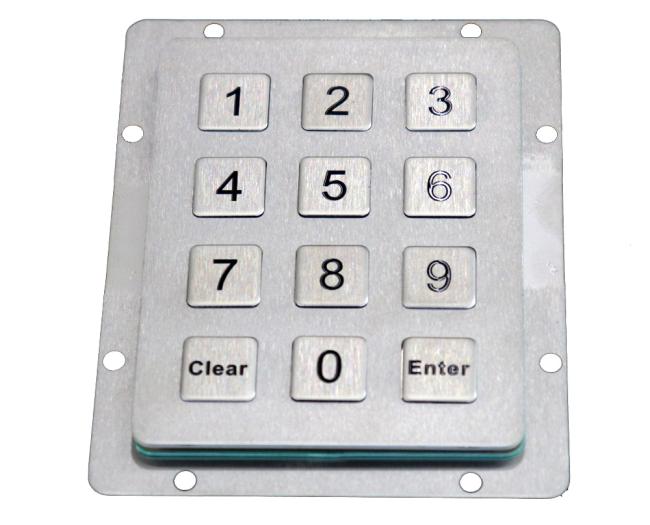

IP65 Waterproof Ruggedized Metal Keypad 12 Keys Industrial Stainless Steel Keypad
Price:
Negotiation
MOQ:
1pcs
Delivery Time:
1-2 weeks
Brand:
CNKHTECH
Product Description
Waterproof uggedized Metal Keypad , 12 Keys Industrial stainless steel keypad
Product Features:
- DIMENSIONS: 93.5mm x 72.5mm (front panel)
- 12 flat keys design numeric keypad in 4 x 3 Layout.
- Water-proof,dust-proof,vandal-proof,shake-proof
- Laser engraved characters for excellent durable.
- Front panel mounting solution
- Matrix output; Also PS/2 or USB connector are available.
- Customized layout is available
APPLICATION -
- The IP65 waterproof ruggedized keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.
TECHNICAL DATA -
|
Material
|
Front panel & Keys: | SUS304 Stainless steel |
| Back panel: | Stainless steel | |
|
ELECTRICAL DATA
|
Interface: | Matrix, USB or PS2 |
| Supply Voltage | 5.0V DC±5% | |
| Current Rating: | appr. 30mA | |
| EMC Standard: | It is compliance with the council EMC directive 2004/108/EC | |
| EN55022: | 2006+A2:2010 | |
| EN55024: | 1998+A1:2001+A2:2003 | |
|
Environmental Characteristics
|
Operating temperature: | -20 C to + 60 C |
| Storage temperature: | - 40 C to + 80 C | |
| Operating RH: | 20-95% | |
| Atmospheric pressure: | 60-106Kpa. | |
| Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
| Trackball lifespan | > 10 Mio revolutions | |
| Lifespan | > 5 years | |
| Reliability | MTBF | >5,0000H |
| MTTR | <30min | |
| Operation system |
WINDOWS98/ME/2000/2003/XP/WIN7/8/10, Vista/Linux,Unix,Mac OSX,iOS, Android |
|
