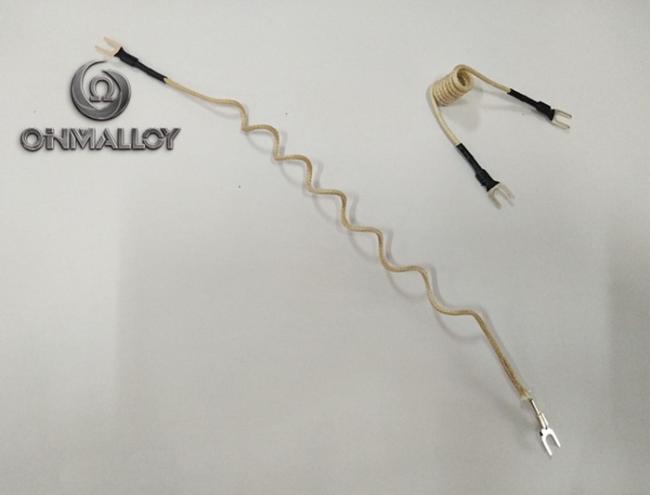

Low Temperature PTFE Fiberglass Insulated Wire 0.5mm OCr25Al5 Conductor For Relay
Price:
negotiable
MOQ:
100meters
Delivery Time:
7-10 days
Brand:
OHMALLOY
Product Description
low temperature PTFE Fiberglass Insulated wire 0.5mm OCr25Al5 conductor for relay
Conductor material: 0Cr25Al5
| Material | Chemical composition (%) | ||||
| Fe | Si | Cr | Al |
Ni |
|
|
0Cr25Al5 |
Bal | Max0.6 | 23~26 | 4.5~6.5 | Max0.6 |
Heating cable structure
| Conductor size | 0.5mm |
| Resistance value (ohm/m) | 1.42+/-5% |
| Insulation layer | PTFE PFA |
| Out jacket | Fiberglass braid |
| OD of cable | 1.8mm |
Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
Available conductor alloy grade as follows:
| NiCr60/15 | CuNi44 | CuNi23 | OCr25Al5 | OCr21Al6 |
| Nickel 200 | Nickel 201 | Nickel 212 | Tinned copper wire | CuNi6 |
| CuNi10 | NiCr35/20 | NiCr AA | Inconel 600 | Inconel 625 |
Available color: Black, white, green, red, yellow, blue
