SS304 Piston High Pressure Solenoid Valve 50mm For Steam / Gas / Corrosive Fluids
YSP series 2-way piston high pressure solenoid valve DN 15 ～ 50 mm
The main technical parameters
◆ Body material: stainless steel.
◆ Applicable medium: water, gas, oil, steam, gas, corrosive fluids.
◆ Temperature Range: -100- + 200 ℃.
◆ medium viscosity: less than 50C St (greater than to be customized).
◆ protection performance: waterproof, explosion-proof (Exd IICT5), anti-corrosion.
◆ Wiring: Terminal Block Type; lead type; male.
◆ Control mode: Normally open, normally closed.
◆ Power supply voltage: DC12-127V; AC36-380V.
◆ Connection: thread, flange (male and special interfaces or add custom adapter).
◆ Leakage amount: zero.
YSP-series solenoid valve specification table
| model |
Orifice size ( mm ) |
Interface size |
Cv
|
Working pressure (bar) | dimension |
weight Kg
|
|||
| NC | NO |
length×width×height A×B×C ( mm ) |
(Kg) | ||||||
| AC200V | DC24V | AC200V | DC24V | ||||||
| YSP-15J | 15 | 1/2＂ | 4.8 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 70×53×135 | 1.1 |
| YSP-20J | 20 | 3/4＂ | 7.6 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 74×57×142 | 1.3 |
| YSP-25J | 25 | 1＂ | 12 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 92×69×150 | 1.7 |
| YSP-32J | 32 | 11/4＂ | 20 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 110×85×164 | 2.7 |
| YSP-40J | 40 | 11/2＂ | 31 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 122×90×168 | 2.9 |
| YSP-50J | 50 | 2＂ | 48 | 0.5～50 | 0.5～40 | 0.5～30 | 0.5～25 | 160×117×190 | 4.7 |

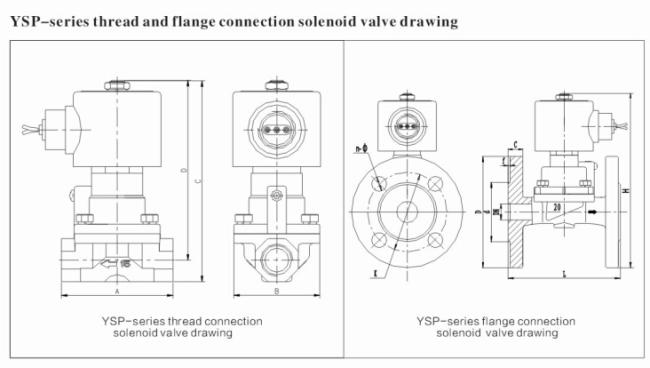

YSP-series flange(NC) solenoid valve dimension table
| model | PN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm) |
weight Kg |
||||||||
| DN | L | D | H | K | d | C | f | n-φ | ||
| YSP—32JF | 32 | 140 | 140 | 218 | 100 | 76 | 18 | 3 | 4-φ18 | 4.5 |
| YSP—40JF | 40 | 148 | 150 | 228 | 110 | 84 | 18 | 3 | 4-φ18 | 5.5 |
| YSP—50JF | 50 | 182 | 165 | 243 | 125 | 99 | 20 | 3 | 4-φ18 | 7.5 |
