SS High Pressure Solenoid Valve Normally Closed , 40mm Solenoid Valve Pilot Operated
YSI series 2-Way stainless steel pilot operated normally closed high pressure solenoid valve DN 15～50mm
high pressure solenoid valve Installation Precautions
1, should refer to the product before installation manual, meets your requirements.
2, the pipeline should be washed before using a clean, medium dirty filter should be installed to prevent impurities interfere with the normal operation of the solenoid valve.
3, the solenoid valve for a long time after the closure, easy to use should be emptying after coagulation; washable when then put away the parts according to the order of restitution installed.
4. solenoid valve is generally working, not reversed, the arrow is the direction of movement of the valve pipeline fluid must be consistent.
5, the solenoid valve should be back to work in freezing place a heat treatment, or set the insulation measures.
6, the solenoid valve is installed general body level, coil vertically upward, some products can be any installation, but the best vertical when conditions permit, in order to increase service life.
7, after the electromagnetic coil leads (connectors) connected, should confirm whether the firm, contact coupling electrical components should not shake loose will cause the solenoid valve does not work. Continuous production of solenoid valves to work, preferably bypass, easy maintenance, without affecting production.
working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:0 ～ 120 ℃
working pressure: 6 ～ 100bar
working type:pilot operated
valvebody material:SS304
sealing material:PTFE
interface:G thread NPT thread
Working voltage:AC220 ～ 240V AC110V 50/60Hz 28VA DC24 20W I P65 H degree voltage could be custom made
Options:
LED light connector ES low power energy saving coil(AC220V 4VA DC4W)
Rc thread
YSI-series(NC)specification table (use ES coil,power will be about 1/4 of using normal coil)
| model | orifice size | Interface size | Cv | working pressure(bar) | length×width | normal order code | weight | |
| AC200V | DC24V | Plastic seal | ||||||
| YSI-15J | 15 | 1/2＂ | 4.8 | 6～100 | 6～100 | 80×55×140 | YSI-15J - AC220V | 1.1 |
| YSI-20J | 20 | 3/4＂ | 7.6 | 6～100 | 6～100 | 90×60×153 | YSI-20J - AC220V | 1.6 |
| YSI-25J | 25 | 1＂ | 12 | 6～100 | 6～100 | 100×68×162 | YSI-25J - AC220V | 2.1 |
| YSI-32J | 32 | 11/4＂ | 20 | 6～80 | 6～80 | 110×80×170 | YSI-32J - AC220V | 2.6 |
| YSI-40J | 40 | 11/2＂ | 30 | 6～80 | 6～80 | 130×90×185 | YSI-40J - AC220V | 3.7 |
| YSI-50J | 50 | 2＂ | 48 | 6～80 | 6～80 | 150×108×201 | YSI-50J - AC220V | 5.3 |

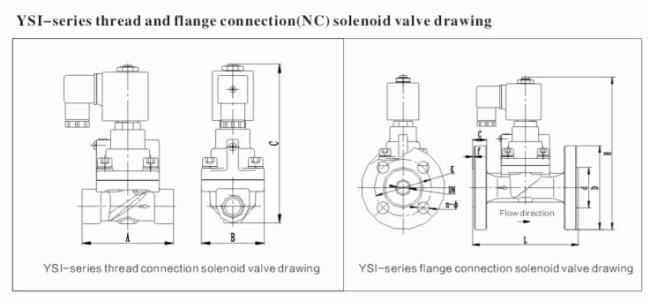

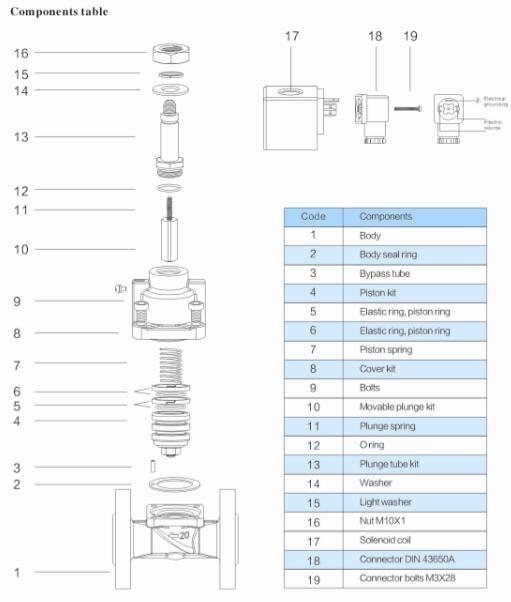

YSI-series flange(NC)high pressure solenoid valve dimension table
| model | PN=2.5MPa GB/T9113.1-2000 flange connection dimension (mm) | weight | ||||||||
| DN | L | D | H | K | d | C | f | n-φ | ||
| YSI—15JF | 15 | 120 | 95 | 175 | 65 | 46 | 14 | 2 | 4-φ14 | 2.5 |
| YSI—20JF | 20 | 130 | 105 | 188 | 75 | 56 | 16 | 2 | 4-φ14 | 3.5 |
| YSI—25JF | 25 | 140 | 115 | 210 | 85 | 65 | 16 | 2 | 4-φ14 | 4.3 |
| YSI—32JF | 32 | 160 | 140 | 218 | 100 | 76 | 18 | 2 | 4-φ18 | 6.4 |
| YSI—40JF | 40 | 170 | 150 | 232 | 110 | 84 | 18 | 2 | 4-φ18 | 7.8 |
| YSI—50JF | 50 | 200 | 165 | 258 | 125 | 99 | 20 | 2 | 4-φ18 | 11.1 |
Options:
LED light connector, ES low power energy saving coil(AC220V 4VA DC 4W)
Rc thread

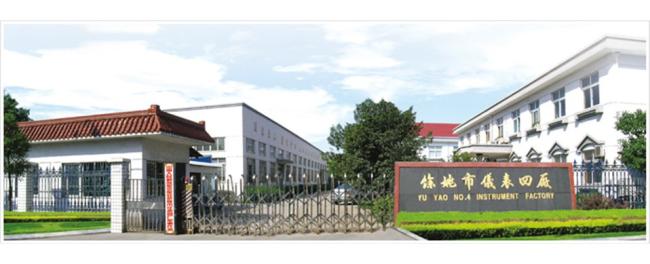

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.
