High Reliability Fast Acting 1/4 Inch Solenoid Valve Stainless Steel Direct Operated
RSP series 2-way mini direct acting normally open brass SS316 water air solenoid valve 1/8＂ ～ 1/4＂
water solenoid valves are suitable for water or liquid as the working medium, can be automated and remote control of water, oil, and other liquid working medium pipe off. As the valve adopts rubber seal, so the cleanliness of the working medium is greatly reduced, it has started to write quickly, and high reliability.
RSP-series direct acting(NO)mini solenoid valve specification table
(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)
|
interface
|
orifice (mm) |
Cv
|
working pressure(bar) |
medium temperature ℃
|
sealing material |
coil insulation degree
|
power |
normal order code
|
||||||
|
min pressure |
Max pressure
|
normal coil | Es coil |
plastic seal AC220V G thread sealing material:blank:NBR E: EPDM V: VITON
|
||||||||||
|
air gas water hotwater liquid light oil |
VA
|
W
|
VA
|
W
|
||||||||||
|
AC 220 V |
DC 24 V |
AC 220 V |
DC 24 V |
|||||||||||
| AC | DC | brass | SS316 | |||||||||||
|
1/8〃
|
1.5 | 0.06 | 0 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-015-06K-AC220V | RSP-015-06JK-AC220V |
| 1.5 | 0.06 | 0 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-015-06K-E-AC220V | RSP-015-06JK-E-AC220V | |||
| 1.5 | 0.06 | 0 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-015-06K-V-AC220V | RSP-015-06JK-V-AC220V | |||
| 2.0 | 0.12 | 0 | 10 | 10 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-020-06K-AC220V | RSP-020-06JK-AC220V | |
| 2.0 | 0.12 | 0 | 10 | 10 | 130 | EPDM | H | 22 | 13 | RSP-020-06K-E-AC220V | RSP-020-06JK-E-AC220V | |||
| 2.0 | 0.12 | 0 | 10 | 10 | 120 | VITON | H | 22 | 13 | RSP-020-06K-V-AC220V | RSP-020-06JK-V-AC220V | |||
| 2.5 | 0.2 | 0 | 6 | 6 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-025-06K-AC220V | RSP-025-06JK-AC220V | |
| 2.5 | 0.2 | 0 | 6 | 6 | 130 | EPDM | H | 22 | 13 | RSP-025-06K-E-AC220V | RSP-025-06JK-E-AC220V | |||
| 2.5 | 0.2 | 0 | 6 | 6 | 120 | VITON | H | 22 | 13 | RSP-025-06K-V-AC220V | RSP-025-06JK-V-AC220V | |||
| 3.0 | 0.25 | 0 | 5 | 5 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-030-06K-AC220V | RSP-030-06JK-AC220V | |
| 3.0 | 0.25 | 0 | 5 | 5 | 130 | EPDM | H | 22 | 13 | RSP-030-06K-E-AC220V | RSP-030-06JK-E-AC220V | |||
| 3.0 | 0.25 | 0 | 5 | 5 | 120 | VITON | H | 22 | 13 | RSP-030-06K-V-AC220V | RSP-030-06JK-V-AC220V | |||
| 4.0 | 0.3 | 0 | 3 | 3 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-040-06K-AC220V | RSP-040-06JK-AC220V | |
| 4.0 | 0.3 | 0 | 3 | 3 | 130 | EPDM | H | 22 | 13 | RSP-040-06K-E-AC220V | RSP-040-06JK-E-AC220V | |||
| 4.0 | 0.3 | 0 | 3 | 3 | 120 | VITON | H | 22 | 13 | RSP-040-06K-V-AC220V | RSP-040-06JK-V-AC220V | |||
|
1/4〃
|
1.5 | 0.06 | 0 | 16 | 16 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-015-08K-AC220V | RSP-015-08JK-AC220V |
| 1.5 | 0.06 | 0 | 16 | 16 | 130 | EPDM | H | 22 | 13 | RSP-015-08K-E-AC220V | RSP-015-08JK-E-AC220V | |||
| 1.5 | 0.06 | 0 | 16 | 16 | 120 | VITON | H | 22 | 13 | RSP-015-08K-V-AC220V | RSP-015-08JK-V-AC220V | |||
| 2.0 | 0.12 | 0 | 10 | 10 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-020-08K -AC220V | RSP-020-08JK-AC220V | |
| 2.0 | 0.12 | 0 | 10 | 10 | 130 | EPDM | H | 22 | 13 | RSP-020-08K -E-AC220V | RSP-020-08JK-E-AC220V | |||
| 2.0 | 0.12 | 0 | 10 | 10 | 120 | VITON | H | 22 | 13 | RSP-020-08K -V-AC220V | RSP-020-08JK-V-AC220V | |||
| 2.5 | 0.2 | 0 | 6 | 6 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-025-08K -AC220V | RSP-025-08JK-AC220V | |
| 2.5 | 0.2 | 0 | 6 | 6 | 130 | EPDM | H | 22 | 13 | RSP-025-08K -E-AC220V | RSP-025-08JK-E-AC220V | |||
| 2.5 | 0.2 | 0 | 6 | 6 | 120 | VITON | H | 22 | 13 | RSP-025-08K -V-AC220V | RSP-025-08JK-V-AC220V | |||
| 3.0 | 0.25 | 0 | 5 | 5 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-030-08K-AC220V | RSP-030-08JK-AC220V | |
| 3.0 | 0.25 | 0 | 5 | 5 | 130 | EPDM | H | 22 | 13 | RSP-030-08K -E-AC220V | RSP-030-08JK-E-AC220V | |||
| 3.0 | 0.25 | 0 | 5 | 5 | 120 | VITON | H | 22 | 13 | RSP-030-08K -V-AC220V | RSP-030-08JK-V-AC220V | |||
| 4.0 | 0.3 | 0 | 3 | 3 | 80 | NBR | H | 22 | 13 | 3 | 3 | RSP-040-08K-AC220V | RSP-040-08JK-AC220V | |
| 4.0 | 0.3 | 0 | 3 | 3 | 130 | EPDM | H | 22 | 13 | RSP-040-08K-E-AC220V | RSP-040-08JK-E-AC220V | |||
| 4.0 | 0.3 | 0 | 3 | 3 | 120 | VITON | H | 22 | 13 | RSP-040-08K-V-AC220V | RSP-040-08JK-V-AC220V |
|||
options:
sealing material: EPDM VITON
Rc thread
digital timer, LED light connector
Es low power energy saving coil(AC 3VA DC 3W)

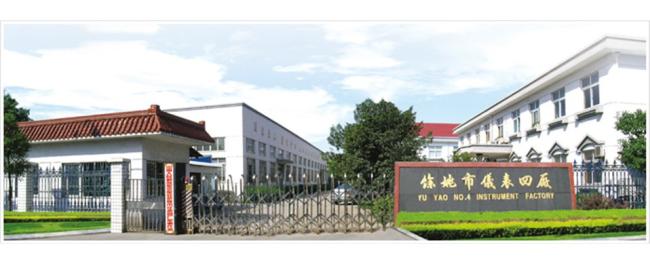

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.
The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.
