2 Way Low Voltage Solenoid Water Valve Stainless Steel 3 Inch Pilot Operated
DFD series 2-way pilot operated normally open brass stainless steel water air solenoid valve 3/8＂ ～ 3＂
working medium:water,liquid,air,light oil(viscosity≤20cst)
medium temperature:-5～80℃
working pressure:0.3～8bar(details see specification table)
working type:pilot operated(NO)
valvebody material:brass SS304
sealing material:NBR
interface:G thread NPT thread
Working voltage:AC220～240V AC110V 50/60Hz 18VA
DC24V DC12V 14W IP65
Options:
sealing material: EPDM VITON
digital timer LED light connector
Es low power energy saving coil(AC 4VA DC 4W)
valvebody material: SS316 Rc thread
DFD-series 2-way pilot operated(NO)solenoid valve specification table
(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)
|
interface
|
orifice (mm) |
Cv
|
working pressure(bar) |
max medium temp. ℃
|
sealing material |
coil insulation degree
|
power
|
normal order code
|
||||||
|
min pressure |
Max working pressure
|
normal coil | Es coil |
plastic seal AC220V G thread sealing material:blank:NBR E:EPDM V:VITON
|
||||||||||
|
air gas water hotwater liquid light oil |
VA
|
W
|
VA
|
W
|
||||||||||
|
AC 220 V |
DC 24 V |
AC 220 V |
DC 24 V |
|||||||||||
| AC | DC | brass | SS | |||||||||||
| 3/8〃 | 13 | 4.5 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-10K-AC220V | DFD-10JK-AC220V |
| 13 | 4.5 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-10K-E-AC220V | DFD-10JK-E-AC220V | |||
| 13 | 4.5 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-10K-V-AC220V | DFD-10JK-V-AC220V | |||
|
1/2〃
|
13 | 4.5 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-15K-AC220V | DFD-15JK-AC220V |
| 13 | 4.5 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-15K-E-AC220V | DFD-15JK-E-AC220V | |||
| 13 | 4.5 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-15K-V-AC220V | DFD-15JK-V-AC220V | |||
| 3/4〃 | 18 | 7.2 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-20K-AC220V | DFD-20JK-AC220V |
| 18 | 7.2 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-20K-E-AC220V | DFD-20JK-E-AC220V | |||
| 18 | 7.2 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-20K-V-AC220V | DFD-20JK-V-AC220V | |||
| 1〃 | 23 | 12 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-25K-AC220V | DFD-25JK-AC220V |
| 23 | 12 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-25K-E-AC220V | DFD-25JK-E-AC220V | |||
| 23 | 12 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-25K-V-AC220V | DFD-25JK-V-AC220V | |||
|
11/4〃
|
32 | 24 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-32K-AC220V | DFD-32JK-AC220V |
| 32 | 24 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-32K-E-AC220V | DFD-32JK-E-AC220V | |||
| 32 | 24 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-32K-V-AC220V | DFD-32JK-V- AC220V | |||
| 11/2〃 | 40 | 30 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-40K-AC220V | DFD-40JK-AC220V |
| 40 | 30 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-40K-E-AC220V | DFD-40JK-E- AC220V | |||
| 40 | 30 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-40K-V-AC220V | DFD-40JK-V-AC220V | |||
| 2〃 | 50 | 48 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-50K-AC220V | DFD-50JK-AC220V |
| 50 | 48 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-50K-E-AC220V -50K-E-AC220V | DFD-50JK-E-AC220V | |||
| 50 | 48 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-50K-V-AC220V | DFD-50JK-V-AC220V | |||
| 3〃 | 80 | 82 | 0.3 | 8 | 6 | 80 | NBR | H | 18 | 14 | 4 | 4 | DFD-80K-AC220V | |
| 80 | 82 | 0.3 | 8 | 6 | 130 | EPDM | H | 18 | 14 | DFD-80K-E-AC220V -50K-E-AC220V | ||||
| 80 | 82 | 0.3 | 8 | 6 | 120 | VITON | H | 18 | 14 | DFD-80K-V-AC220V | ||||
Options:
sealing material: EPDM VITON
digital timer, LED light connector
Es low power energy saving coil(AC 4VA DC 4W)
valvebody material: SS316, Rc thread

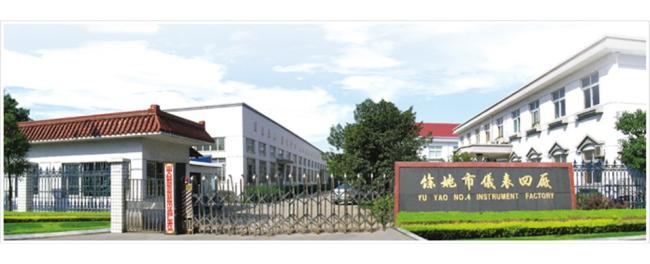

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.
The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.
