ID 510mm Color Coated Steel Coil 0.45 X1200 Mm / Pre Painted Galvanized Steel Sheet
PPGL- Prepainted Galvalume Steel Coil 0.45x4200mm AZ50g
Chemical Composition(%)
| C | Si | Mn | Fe | AL | Zn |
| 0.04 | 0.02 | 0.14 | 42.6 | 55.5 | 0.43 |
Mechanical Properties
Yeild Strength: arround 387 mpa
Tensile Strength: arround 387mpa
Elongation: 21 %
Exported to
Philippines, Malaysia,Pakistan, India, etc.
Application
Color construction: mainly outdoor applications, such as roof, roof structure, rolling shutter doors, kiosks, shutters, guard doors, street waiting room, ventilation.
Electrical appliances: refrigerator, air conditioner, electric range, washing machine shell, oil furnace, etc.
Transportation industry: ceiling, backboard, coaming, car shell, tractor, ship bulkhead, etc.
But the use of more or steel structure workshop, composite board factory, the color steel tile factory
| Base Metal | Hot dip galvalume steel coil (GL) |
| Zinc Coating | AZ50g/m2 |
| Thickness | 0.45 |
| Width | 1200 |
| Quality Standard | ASTMA755M |
| Steel Grade | DX51D, |
| Coil ID | Φ610mm, Φ508mm |
| Coil weight | Usually 3-5mt, or as per your need |
| Coating structure | 2/1; 2/2 |
| Paint Coating | Top:18-25μm;back:5-12μm, |
| Color | RAL color or customized as the sample |
| Special color-coated sheet | Printed,filmed,pressed,matte/matt color-coated sheet |
| Primer Coating | Epoxy primer,Polyester primer,Water-soluble acrylic acid primer,Polyurethane primer |
| Top Coating | PE,PVDF,SMP,HDP |
| Minimum order | 5tons |
| Packaging Details | Fully seaworthy export packing |
| Price Terms | FOB,CIF,CFR |

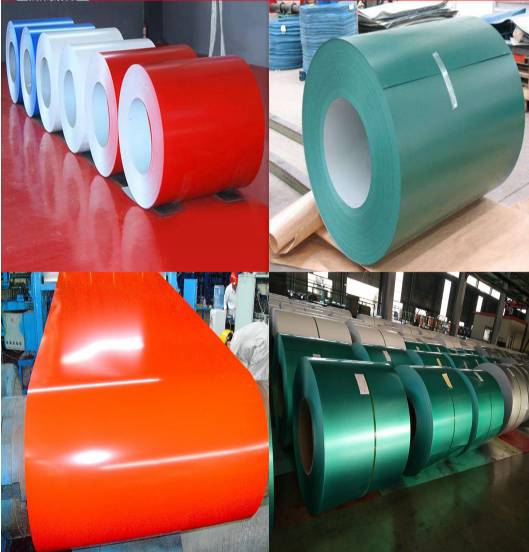

Product

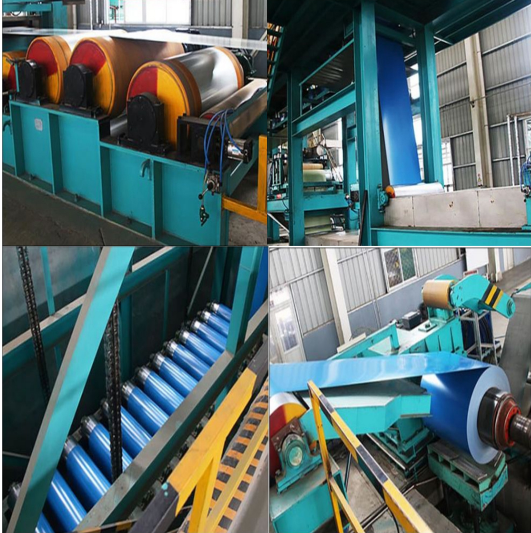

Production Process
Packing

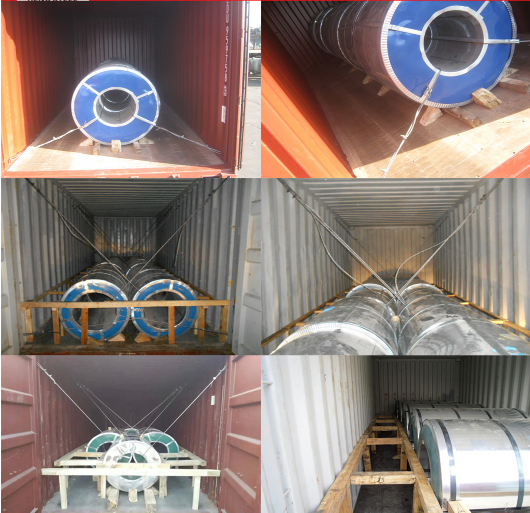

Loading

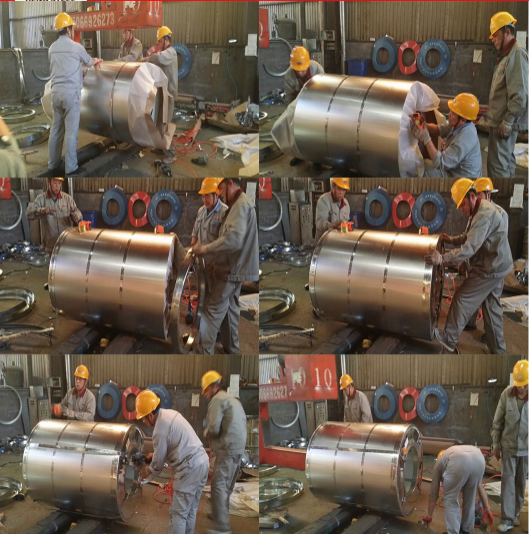

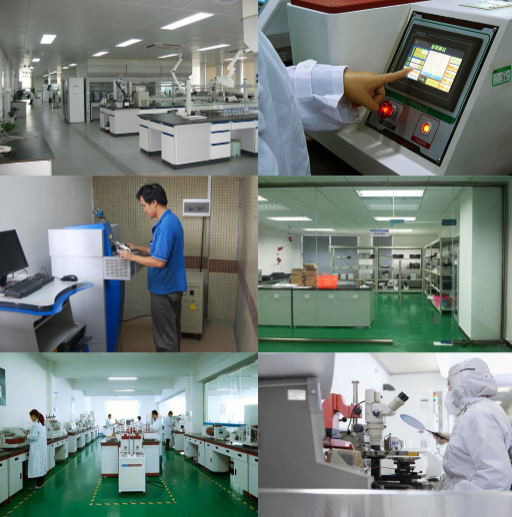

Test
