CSTN 640*480 9.4 Inch KOE LCD Display LMG9200XUCC-A , LCD Digital Panel 12 Months Warranty
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
2-3 Working Days after Order Confirmation
Brand:
KOE
Product Description
KOE Original 9.4 Inch 640*480 CSTN LCD Panel LMG9200XUCC-A Digital Panel
Advantages:
| 1) | wide operating temperature -30~85℃ |
| 2) | ISO9001 compliant |
| 3) | Original Brand New, A grade |
| 4) | 100% Original guarantee |
| 5) | 12 months of warranty |
| 6) | industrial LCD ,at least 3-5 years stable delivery |
Industrial application:
1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement, test and measurement equipment, communications,
Transportation equipment (automobiles, ships, trains )
2) Special Usage
Medical equipment, safety equipment, transportation equipment
3) Specific Usage
Cockpit equipment, military systems, aerospace equipment, nuclear reactor control systems, life support systems
Specifications:
| Module number | LMG9200XUCC-A |
| Resolution | 640 (RGB) x 480 (VGA) |
| Pixel Pitch | 0.30 x 0.30 (mm) |
| Active Area | 191.975(H) x 143.975(V) (mm) |
| Panel Type | CSTN-LCD,LCM |
| Mode | STN, Normally Black |
| Panel Size | 9.4 Inch |
| Number of Colors | 16.7M |
| Lamp Type | 1 pcs CCFL |
| Application | Industial Application |
| Pixel Density | 84 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Aspect Ratio | 4:3 ( H:V) |
| Form Factor | Flat Rectangle Display |
| LED Life (hrs.) | 50K(Min.) |
| Power Consumption (W) | 22(Typ.) |
| Supply Voltage (V) | 5.0V |
| Response time | 5 (ms) |
| Operate temperature | -30-85 (°C) |
| Storage temperature | -30-85 (°C) |
| Dot Pitch | 0.10*0.30 mm ( H*V) |
| Pixel Pitch | 0.30*0.30 mm ( H*V) |

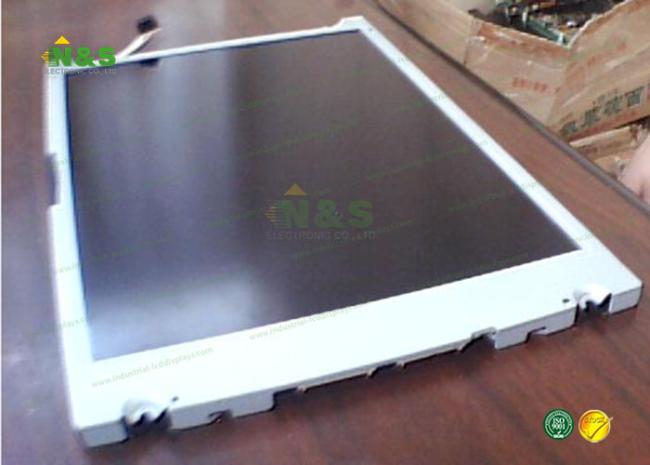

Detail Picture for KOE LMG9200XUCC-A Digital Panel:
