Normally Black Sharp LQ0DZC0031 LCD Screen Replacements for Pocket TV panel
Normally Black Sharp LQ0DZC0031 LCD Screen Replacements for Pocket TV panel
SHARP LQ0DZC0031H General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ0DZC0031H |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Clear |
| Brightness : | 230 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 7S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 2.5/5.0V (Typ.)(VCC/AVDD) |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise
SHARP LQ0DZC0031H Optical Features
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 230 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.309; Wy:0.347 |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

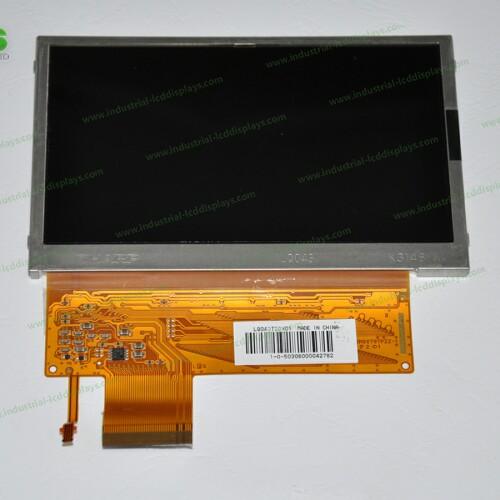

Details Pictures for Sharp LQ0DZC0031 LCD Screen Replacements
