LQ10D363 Sharp LCD Panel 10.4 inch LCM 640×480 262K CCFL
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 Working Days after order confirmation
Brand:
Sharp
Product Description
LQ10D363 Sharp LCD Panel 10.4 inch LCM 640×480 262K CCFL
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
ΠYear warranty
ΠDay shipping
‹ Return
LQ10D363 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ10D363 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 246.5×179.4 mm | |
| Surface : | Antiglare (Haze 28%), Hard coating (3H), Antireflection | |
| Brightness : | ||
|
||
| Display Colors : | 262K (6-bit) | |
|
||
| Viewing Angle : | ||
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Input Voltage : | 5.0V (Typ.)(VCC) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
|
4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.110×0.330 mm (H×V) | |
| Pixel Pitch : | 0.330×0.330 mm (H×V) | |
| Surface : | Antiglare (Haze 28%), Hard coating (3H), Antireflection | |
|
211.2×158.4 mm (H×V) | |
| Bezel Area : | 216.2×163.4 mm (H×V) | |
|
246.5×179.4 mm (H×V) | |
| Holes & Brackets : | Face mounting holes (4 pcs) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
 |

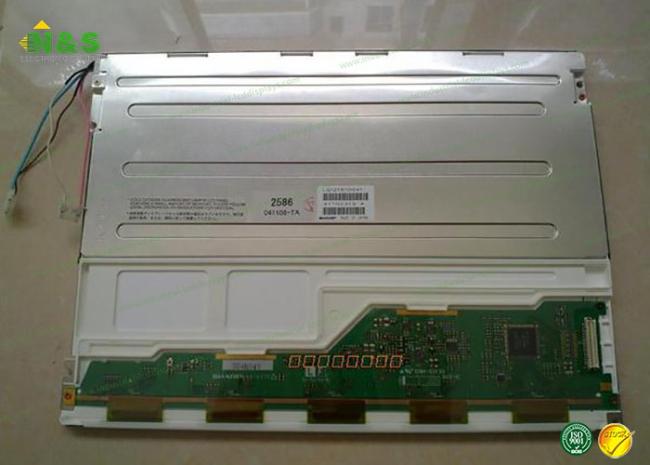

LQ10D363 Picture
