LQ10D42 Specification

Panel Brand :	SHARP
Panel Model :	LQ10D42 3 Compatible model
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	10.4 inch
Resolution :	640(RGB)×480 , VGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	211.2×158.4 mm
Outline :	265×195×11.5 mm
Surface :	Antiglare (Haze 28%), Hard coating (2H)
Brightness :	300 cd/m² (Typ.)
Contrast Ratio :	100:1 (Min.)
Display Colors :	262K (6-bit)
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	60/60/40/50 (Min.)(CR＞5) (L/R/U/D)
Lamp Type :	2 pcs CCFL Without Driver
Signal Interface :	Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage :	5.0V (Typ.)(VCC)

We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

Panel Size :	10.4 inch
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	76 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.110×0.330 mm (H×V)
Pixel Pitch :	0.330×0.330 mm (H×V)
Surface :	Antiglare (Haze 28%), Hard coating (2H)
Active Area :	211.2×158.4 mm (H×V)
Bezel Area :	216.2×163.4 mm (H×V)
Outline Dimension :	265×195 mm (H×V)
Outline Depth :	11.0±0.5 mm
Holes & Brackets :	Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

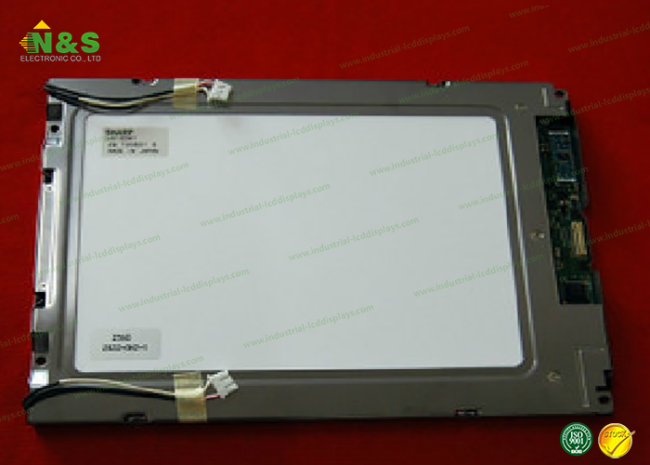

LQ10D42 Picture
