PD064VX6 TFT LCD Module 6.4 inch LCM 640×480 350 400:1 262K CCFL TTL
PD064VX6 TFT LCD Module 6.4 inch LCM 640×480 350 400:1 262K CCFL TTL
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
PD064VX6 Detail
| Panel Size : | 6.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2030 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2030 mm (H×V) |
| Weight : | 174±10g |
| Surface : | Antiglare |
| Active Area : | 129.6×97.44 mm (H×V) |
| Bezel Area : | 134.8×101.8 mm (H×V) |
| Outline Dimension : | 146.4×113 mm (H×V) |
| Outline Depth : | 7.0±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/50/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.340 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points)  |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

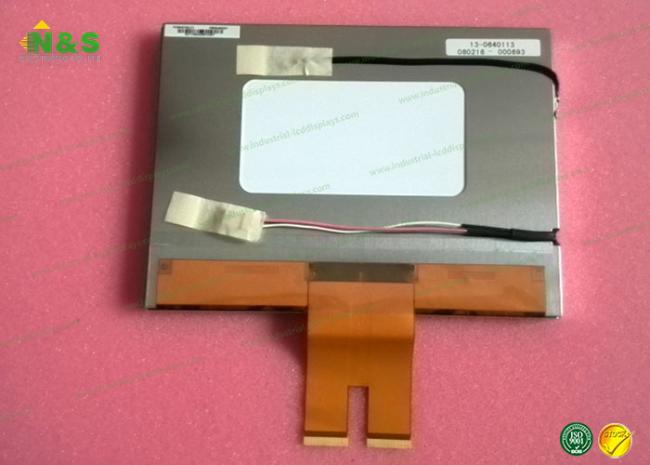

PD064VX6 Picture
