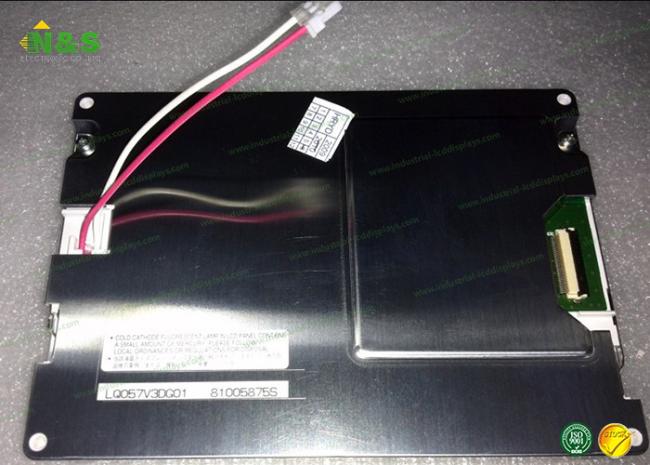

LQ057V3DG01 5.7 inch 640*480 LCD Display for Industrial Equipment by SHARP
LQ057V3DG01 5.7 inch 640*480 LCD Display for Industrial Equipment by SHARP
5.7", 640×480, 6-bit, TTL, 2D, CCFL, Flat, LCM Hot Model
| Panel Model | Size | Resolution | cd/m2 | C/R |
| LQ057V3DG01 | 5.7" | 640×480 | 400 | 600:1 |
| PD057VT3 | 5.7" | 640×480 | 400 | 600:1 |
| TCG057VG1CA-G00 | 5.7" | 640×480 | 350 | 500:1 |
| PD057VT2 | 5.7" | 640×480 | 500 | 600:1 |
| TCG057VG1AC-G00 | 5.7" | 640×480 | 350 | 400:1 |
| TX14D14VM1BAA | 5.7" | 640×480 | 350 | 350:1 |
| TX14D14VM1BBA | 5.7" | 640×480 | 280 | 350:1 |
| TCG057VG1AD-G00 | 5.7" | 640×480 | 280 | 400:1 |
| TCG057VG1CA-A00 | 5.7" | 640×480 | 350 | 500:1 |
SHARP LQ057V3DG01 General Features
Panel Brand : SHARP
Panel Model : LQ057V3DG01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Active Area : 115.2×86.4 mm
Outline : 144×104.6×13.5 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 8/21 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D)
Lamp Type : 1 pcs CCFL [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)(VCC)
