10.4 inch SHARP LQ104V1DG52 TN LCM 640×480 350nits CCFL TTL 31pins
10.4 inch SHARP LQ104V1DG52 TN LCM 640×480 350nits CCFL TTL 31pins
LQ104V1DG52 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ104V1DG52 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 246.5×179.4×15.5 mm |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.) |
SHARP LQ104V1DG52 Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 620g (Max.) |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×162.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 15.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

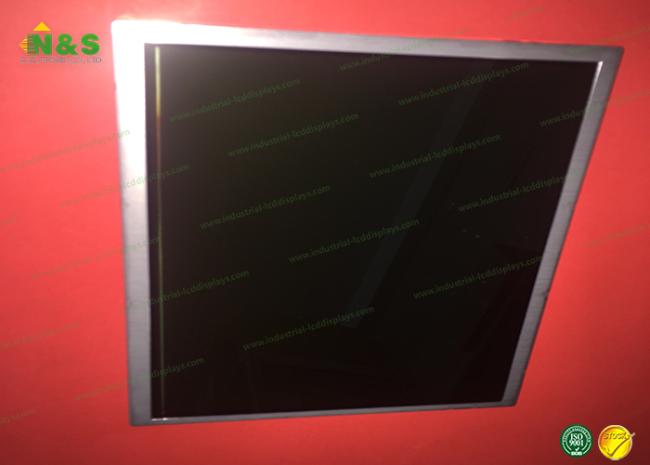

LQ104V1DG52 Picture
