SHARP 8.4 inch LQ084V1DG21 TN LCM 640×480 300nits CCFL TTL 31pins
SHARP 8.4 inch LQ084V1DG21 TN LCM 640×480 300nits CCFL TTL 31pins
LQ084V1DG21 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ084V1DG21 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.88×129.6 mm |
| Outline : | 216×152.4 mm |
| Surface : | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
SHARP LQ084V1DG21 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45 (Max.)(5 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
Reasonable price
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

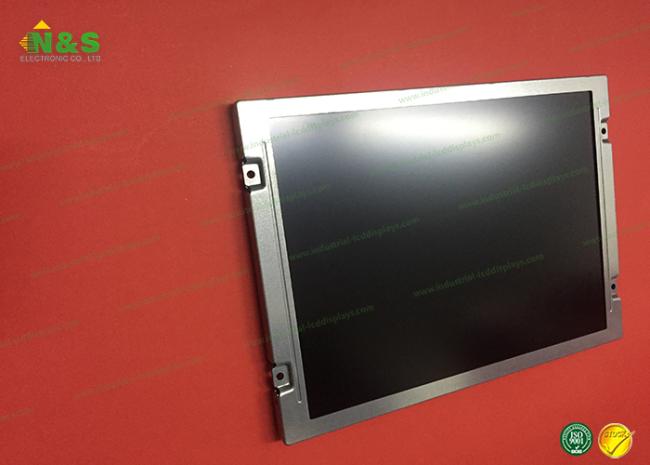

LQ084V1DG21 Picture
