Flat Rectangle Industrial LCD Displays TD022SREC6 TPO LTPS TFT-LCD 2.2 Inch 240×320
New and original TD022SREC6 TPO LTPS TFT-LCD ,2.2 inch, 240×320 New and original
TD022SREC6 Basic Information
| Panel Model | TD022SREC6 |
|---|---|
| Panel Brand | TPO |
| Descrition | LTPS TFT-LCD ,2.2 inch, 240×320 |
| Panel Type | LTPS TFT-LCD |
| Remarks | 2 in 1 FPC |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
TD022SREC6 Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 180 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.047×0.141 mm (H×V) |
| Pixel Pitch | 0.141×0.141 mm (H×V) |
| Active Area | 33.84×45.12 mm (H×V) |
| Outline Dimension | 40.6×56.6 mm (H×V) |
| Outline Depth | 2.91 (Typ.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
TD022SREC6 Optical Features
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 195 cd/m² (Typ.) |
| Contrast Ratio | 8:1 (Typ.) (Reflective) |
| Display Color | 65K () |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 14 (Typ.)(Tr+Td) |
| Viewing Angle | 55/45/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio | 12/20% (Typ./Max.) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
TD022SREC6 Electronics Feature
| Reverse Scan | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TD170WGCB3 | TPO | 17.0" | 1280×1024 |
| 990000408 | TPO | 2.7" | 320×240 |
| PS25TLCM | TPO | 2.5" | 320×240 |
| 990000673 | TPO | 3.0" | 960×480(dot) |
| 990000451 | TPO | 3.0" | 320×240 |
| TD025THEF2 | TPO | 2.5" | 320×240 |
| TD028TGEA1 | TPO | 2.8" | 240×320 |
| 990000072 | TPO | 3.0" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

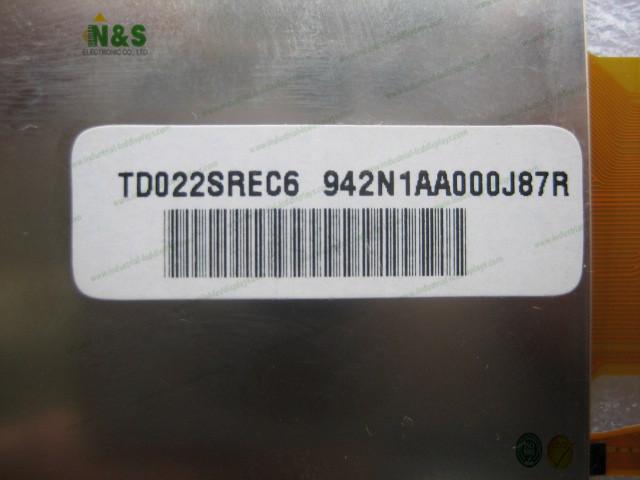

TD022SREC6 pictures
