3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz
New and original LS037V7DW01 SHARP CG-Silicon ,3.7 inch, 480×640 for 60Hz
LS037V7DW01 Basic Information
| Panel Model | LS037V7DW01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | CG-Silicon ,3.7 inch, 480×640 |
| Panel Type | CG-Silicon |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Remarks | VGA/QVGA mode selectable,8/262K color selectable |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
LS037V7DW01 Mechanical Features
| Dot Resolution | 480(RGB)×640 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 217 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.039×0.117 mm (H×V) |
| Pixel Pitch | 0.117×0.117 mm (H×V) |
| Weight | 48g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 56.16×74.88 mm (H×V) |
| Bezel Area | 59.8×78.5 mm (H×V) |
| Outline Dimension | 65×89.2 mm (H×V) |
| Outline Depth | 4.4/6.4 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
LS037V7DW01 Optical Features
| Display Mode | Normally Black, Transflective |
|---|---|
| Brightness | 165 cd/m² (Typ.) |
| Contrast Ratio | 2:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 35% NTSC (CIE1931) |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White Variation | 1.67 (Max.)(9 points) |
| Reflectance Ratio | 2/4% (Min.Typ.) |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LS037V7DW01 Electronics Feature
| Reverse Scan | Yes (U/D, L/R) |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM64K101 | SHARP | 7.2" | 640×480 |
| LM64K111 | SHARP | 6.0" | 640×480 |
| LM64P80 | SHARP | 9.4" | 640×480 |
| LM64P839 | SHARP | 9.4" | 640×480 |
| LM050QC1T03 | SHARP | 5.0" | 320×240 |
| LM10V331 | SHARP | 10.4" | 640×480 |
| LM10V35N | SHARP | 10.4" | 640×480 |
| LM32K071 | SHARP | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

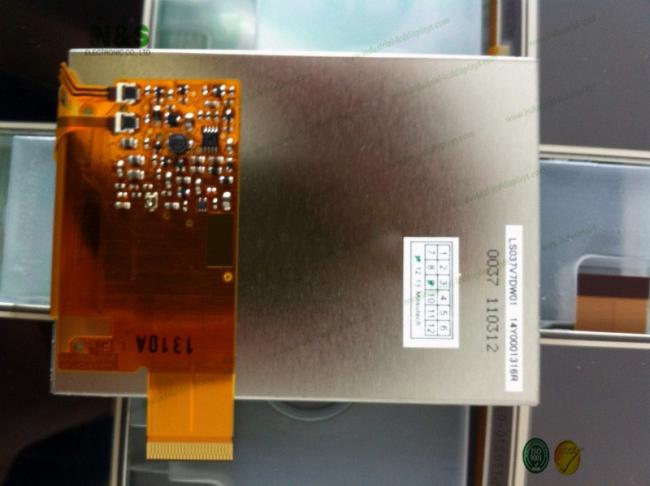

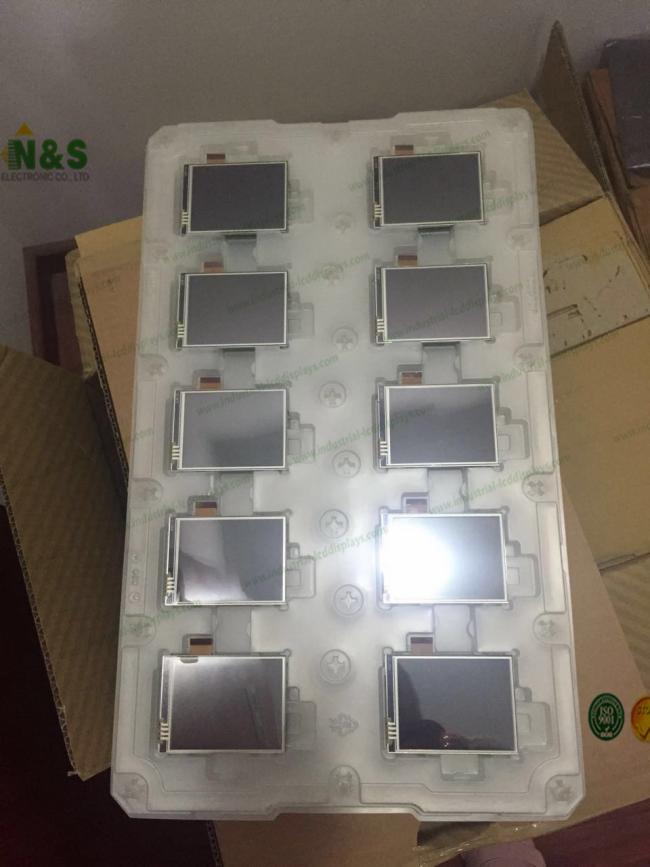

LS037V7DW01pictures
