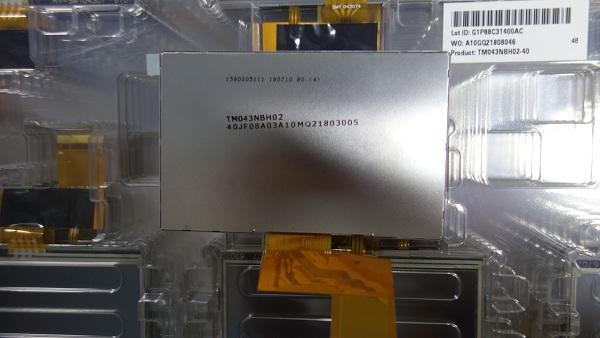

LCM Composition Tianma LCD Displays 4.3 Inch 480*272 TM043NBH02-40 300 Brightness
1.Specification
TM043NBH02-40 is a 4.3" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .
Landscape type, With Touchscreen, White LED Backlight, Wide Aspect Ratio , 3 in1 FPC, Down side FPC (46.05mm length). Based on its features, Panelook recommend that this model be applied to Industrial, Portable Navigation, Pocket TV, MP4 PMP etc.
Feature | Spec | |
Display Spec. | Size | 4.3 inch |
| Resolution | 480(RGB)x272 | |
| Interface | RGB 24 bits | |
| Color Depth | 16.7M | |
| Technology Type | a-Si | |
| Pixel Configuration | R.G.B Vertical Stripe | |
| Display Mode | TN,NW | |
| Surface Treatment | AG | |
| Viewing Direction | 6 o’clock | |
| Gray Scale Inversion Direction | 12 o’clock | |
Mechanical Characteristics | LCM (W x H x D) (mm) | 105.50x67.20x4.10 |
| Active Area(mm) | 95.04x53.856 | |
| With /Without TSP | With TSP | |
| Weight (g) | TBD | |
| LED Numbers | 10 LEDs | |
Note 2: Requirements on Environmental Protection: Q/S0002 Note 3: LCM weight tolerance: ± 5%
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
2. Driving TFT LCD Panel
| Item | Symbol | MIN | MAX | Unit | Remark |
| Supply Voltage | VDD | -0.3 | 4.6 | V | |
| Logic Input Voltage Range | VIN | -0.3 | VDDI+0.3 | V | |
| Logic Output Voltage Range | VO | -0.3 | VDDI+0.3 | V | |
Back Light Forward Current | ILED | 25 | mA | For each LED | |
| Operating Temperature | TOPR | -20 | 70 | ℃ | |
| Storage Temperature | TSTG | -30 | 80 | ℃ |

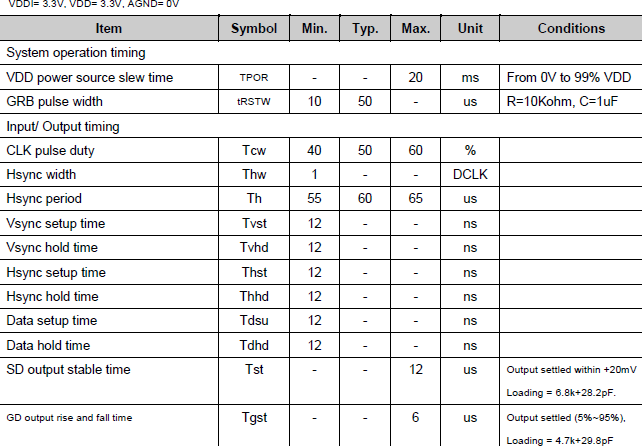

3.AC Characteristics
4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q4:Do you accept sample order?
A:Yes,sample order is welcome.
Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
