112DB Security House Alarm Siren 76 Times Per Minute Flash Rate Fire Alarm
112DB Security Alarm Siren 76 times per minute Flash rate Fire Alarm
Product Introduction
| Model | CS-104 |
| Voltage | 24VDC, Current 120mA |
| Alarm SPL | 112DB |
| Size | 115*133*50mm |
| Color | Red |
|
Flash Rate
|
65times/minute
|
|
Alarm SPL
|
108±3DB
|
Product Overview
Work Voltage: DC20V-DC30V
Work Current (average): 120mA
Flash intensity: More than 1.2WS
Flash cycle <2.0s
Flasher life: More than 30000times
Max alarm volume: More than 100dB
Alarm voice for A: Police car
B: Fire Truck ( default)
C: Ambulance
Fire alarm strobe detailed description Purpose: The sound -light fire alarm apparatus are one kind terminal device for fire alarm, it is fit for thr sound light alarm when fire happen.
Trait: Selected two or the four wire system wire method, the main line end receivestwo main
Lines, not polarization, power source termination to DC12/24V power line
Insatllation
1, at first, get into two hole well in the install place(wall), the hole distance is 65MM, Installs the placstics and swells stopper, (if the wall is the wooden material, can be by attacking the screw and fastening by oneself directly );
2, connect DC12/24 power and network link, and set up a kind of alarm sound well according to the need;
3, specilized in the screw by oneself with two, fix the alarm to install in the place, tighten the screw alarm.
Flash & Sound Siren

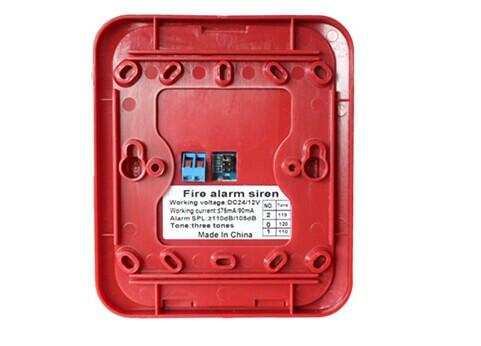

Product Picture
