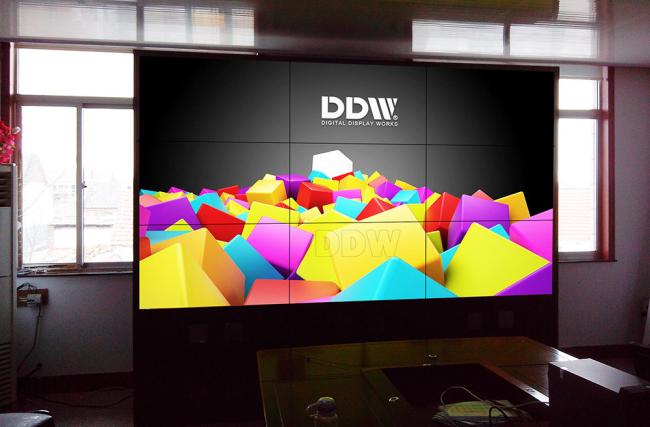

IPS screens seamless lcd video wall 16 : 9 Aspect Ratio monitores video wall display
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
3 working days upon payment
Brand:
DDW
Product Description
55 inch samsung video wall 3.5mm thin bezel 500nits brightness led backlit LG ips video wall
Parameters
- Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
- 500its brightness , MEGA DCR contrast
- FHD physical resolution 1920x1080
- Only 3.5mm Ultra narrow bezel , high quality , practical , good vision effect
- Signal interface rich , RS232 , , DVI , VGA , YPbPr , AV
- FHD video wall unit , high brightness , high contrast , high gamut
- Flexible structure design , easy installation , extensible , arbitrary combination
- Stable performance , suitable working for a long time
Key features
- Support a variety of signal ports
- Built-in splicing module , Support splice function
- Support Creating one window PIP across the screen , roaming service , scaling , PIP
- Support matrix joint control
- Unique DNX motion supplement image processing technology
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output
- Input by remote control with wire , mobile receiver head
Specifications
| Model No. | DDW-LW550HN11 |
| LCD Technology | LG a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Bezel Width | 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | WLED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.63×0.63mm |
| Active Display Area(WxH) | 1209.6 × 680.4 mm |
| Panel Dimension(WxHxD) | 1213.5x684.3x67.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Various video wall control board options
