1080P Wall Mount LCD Display large format display monitor FHD video wall unit indoor application
1080P Wall Mount LCD Display large format display monitor FHD video wall unit indoor application
Parameters
1, Original LG commercial grade lcd video wall display panel, 16:9 LG a-Si TFT-LCD
2, 700its brightness , MEGA DCR contrast
3, FHD physical resolution 1920x1080
4, Only 1.8mm Ultra narrow bezel , high quality , practical , good vision effect
5, Signal interface rich , RS232 , , DVI , VGA , Y Pb Pr , AV
6, FHD video wall unit , high brightness , high contrast , high gamut
7, Flexible structure design , easy installation , extensible , arbitrary combination
8, Stable performance , suitable working for a long time
Key features
Support a variety of signal ports
Built-in splicing module , Support splice function
Support Creating one window PIP across the screen , roaming service , scaling , PIP
Support matrix joint control
Unique DNX motion supplement image processing technology
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output
Input by remote control with wire , mobile receiver head
Specifications
| Panel Specifications | |
| LCD Technology | LG a-Si TFT-LCD |
| Active Screen Diagonal | 55" (1168 mm) |
| Bezel Width | Total: 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | WLED |
| Luminance(nits) | 800cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.76125×0.76125mm |
| Active Display Area(WxH) | 1039.8675×584.64 mm |
| Panel Dimension(WxHxD) | 1046.8×591.6x49.5mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |

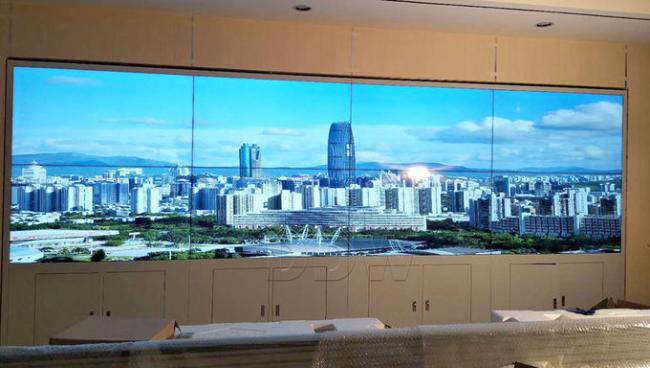

LG video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
