Seamless 55 inch Samsung curved monitor 500nits brightness LCD video wall
Curved Video Wall Descriptions
1, Original SHARP commercial grade lcd video wall, 16:9 SHARP a-Si TFT-LCD;
2, 500nits brightness, MEGA DCR contrast;
3, FHD physical resolution 1920x1080;
4, Only 5.3mm ultra narrow bezel , high quality , practical , good vision effect;
5, Signal interface rich , RS232 , , DVI , VGA , YPbPr , AV;
6, HD video wall unit , high brightness , high contrast , high gamut;
7, Flexible structure design, easy installation, extensible, arbitrary combination;
Curved Video Wall Specifications
| Panel Specifications | |
| LCD Technology | Samsung a-Si TFT-LCD |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | WLED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.5593x0.5593mm |
| Active Display Area(WxH) | 1073.8 × 604 mm |
| Panel Dimension(WxHxD) | 1077.6x607.8x55.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| 1 | |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |

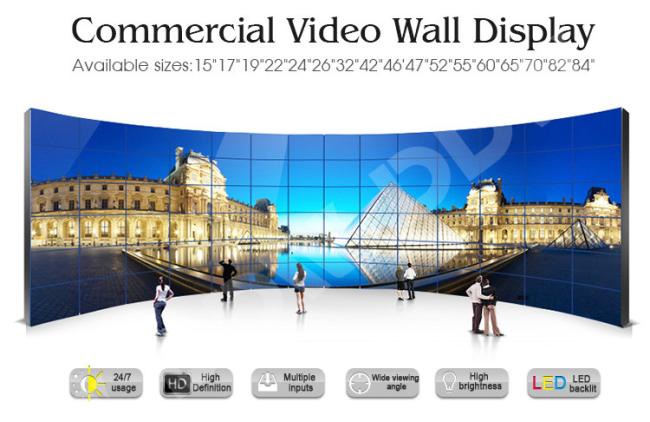

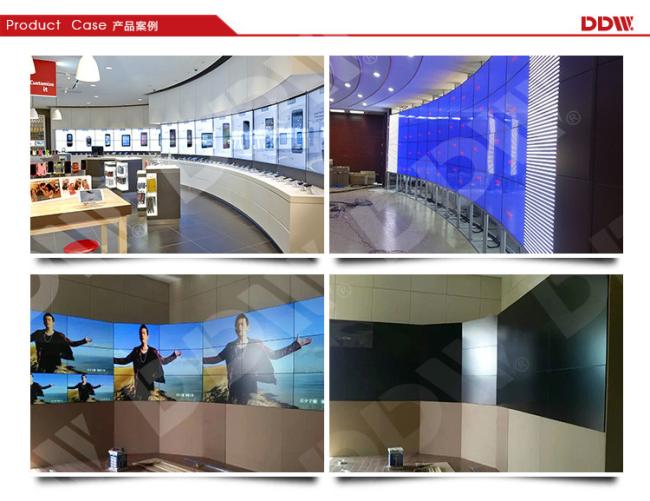

About the installation screen first curved stitching calculation data , real-time measurement , coherent , forming a perfect arc between the liquid crystal splicing unit. In the display area is relatively small , with curved stitching create a relatively wider field of view , the relative increase in the visual display area , for customers to create a more comfortable viewing. Therefore , contrast , curved stitching large screen can bring a better perception of the effect.
Generally for some group company which has large number of viewer and has high requirement for view , if the display area is allowed and enough , we can use curved LCD video wall display.
