High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
3 working days upon payment
Brand:
DDW
Product Description
High Contrast CCTV Video Wall For Exhibition , Stadium And Gymnasium
CCTV Video Wall Key features:
- Support creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
CCTV Video Wall parameters

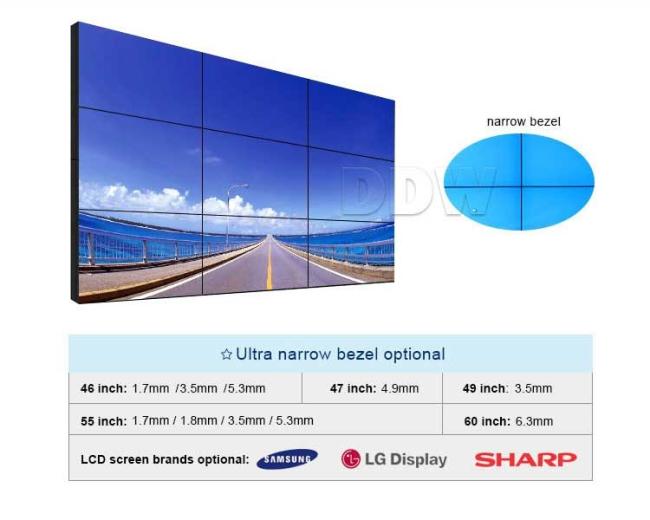

1. Only 1.8mm ultra narrow bezel, high quality ,practical ,good vision effect.
2. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3. HD video wall unit--- High brightness,high contrast,high gamut .
4. Flexible structure design ---easy installation ,extensible,arbitrary combination
5. Stable performance,suitable working for a long time
CCTV Video Wall Specifications:
| Model No: | DDW-LW490DUN-TJB1 |
| LCD Technology | LG IPS LCD |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5593x0.5593mm |
| Active Display Area(WxH) |
1073.8 × 604 mm |
| Panel Dimension(WxHxD) |
1075.38 x 605.8x53.6mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
CCTV Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
