Indoor Outdoor Video Wall LCD Screens , Long Life Hdmi Video Wall
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
3 working days upon payment
Brand:
DDW
Product Description
Indoor Outdoor Video Wall LCD Screens , Long Life Hdmi Video Wall
Video Wall LCD Screens Features:
- Ultra-narrow border design of the current width
- Full-screen high definition display, up to 1080P
- Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
- using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
- Long life, stable operation, no burns, injuries, low maintenance costs
- A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.
- ultra-wide viewing angle technology extend, ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.
Video Wall LCD Screens main parameters
- 500 nits brightness,MEGA DCR contrast
- FHD physical resolution 1920x1080
- Only 1.8 mm ultra narrow bezel, high quality ,practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- FHD video wall unit--- High brightness,high contrast,high gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
Video Wall LCD Screens Specifications
| Model No: | DDW-LW490DUN-TJB1 Video Wall LCD Screens |
| LCD Technology | LG LCD |
| Active Screen Diagonal | 49'' |
| Pixel Pitch(WxH) | 0.5593x0.5593mm |
| Active Display Area(WxH) | 1073.8 × 604 mm |
| Panel Dimension(WxHxD) | 1075.38x605.8x53.6mm |
| Total Bezel Width | 1.8 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
Video Wall LCD Screens Board Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |

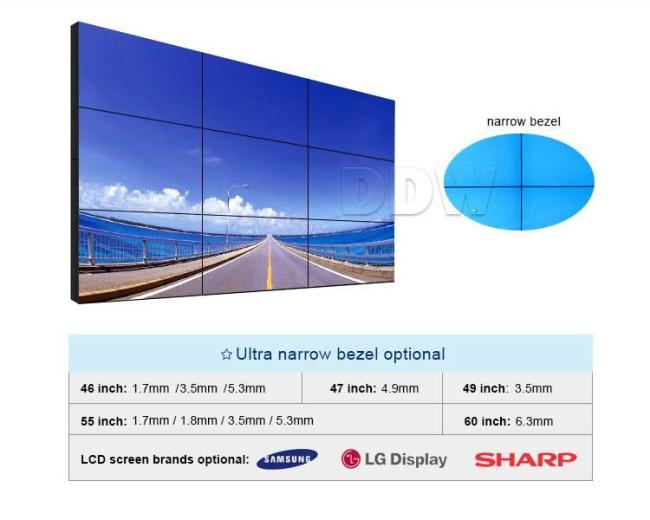

Video Wall LCD Screens Details
