1920*1080 Control Room Video Wall / Anti Glare Multi Panel LCD Display
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
3 working days upon payment
Brand:
DDW
Product Description
1920*1080 Control Room Video Wall / Anti Glare Multi Panel LCD Display
Control Room Video Wall basic informations:
- original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
Control Room Video Wall main parameters
- FHD physical resolution 1920x1080
- Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
- Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- HD video wall unit--- High brightness,high contrast,high gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
Control Room Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
Control Room Video WallSpecifications:
| Model No: | DDW-LW550HN11 |
| LCD Technology | SAMSUNG |
| Active Screen Diagonal | 55 Inch |
| Total Bezel Width | 3.5 mm |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |

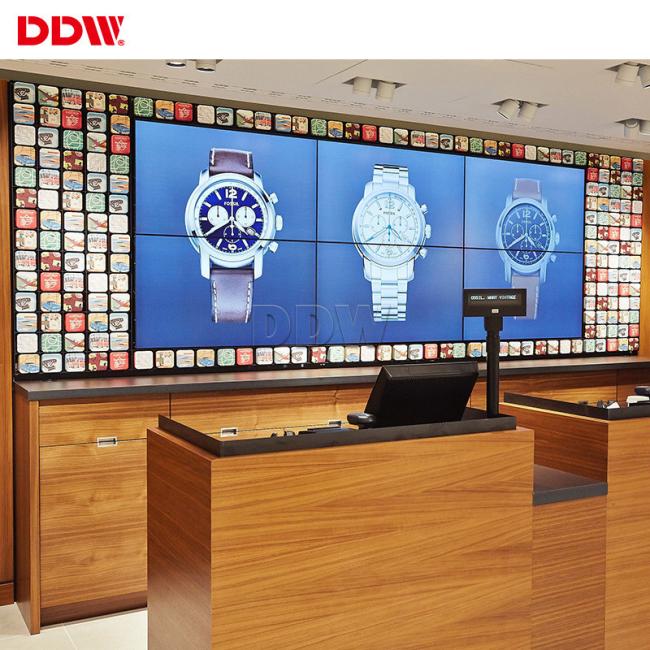

Control Room Video Wall Pictures
