Narrow Bezel Seamless LCD Display / 55 Inch Advertising Video Wall
Narrow Bezel Seamless LCD Display / 55 Inch Advertising Video Wall
Seamless LCD Display features
- Original INNOLUX commercial grade lcd video wall panel , 16:9 INNOLUX a-Si TFT-LCD
- 700nits brightness , 4000:1 contrast.UHD video wall unit , high brightness, high contrast, high gamut
- 1080P UHD physical resolution 1920x1080
- Only 1.7mm narrow bezel , high quality , practical , good vision effect

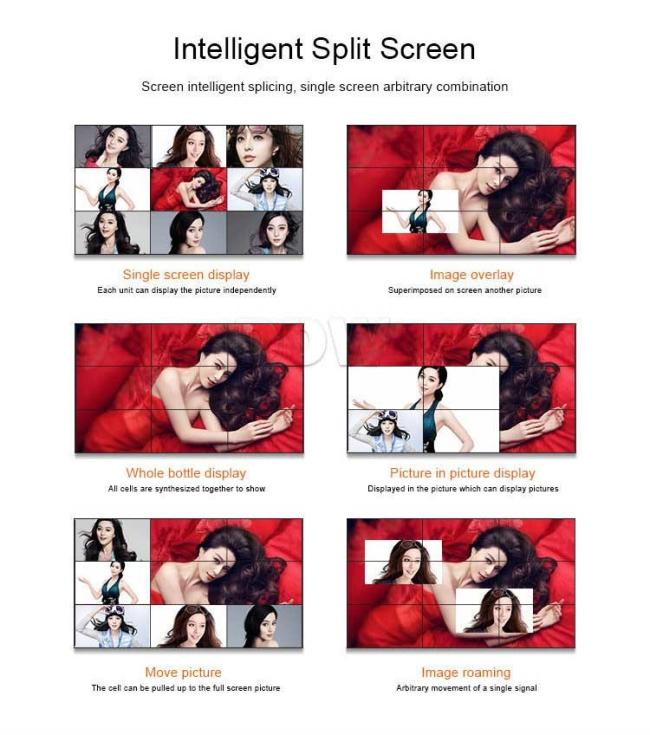

- Flexible structure design , easy installation , extensible , arbitrary combination
Seamless LCD Display main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut.
3. FHD physical resolution 1920x1080
4. Only 5.3 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
Seamless LCD Display Specifications:
| Model No: | DDW-DV55FHM-NS0 Seamless LCD Display |
| Active Screen Diagonal | 55'' |
| Bezel Width | Total: 5.3 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) |
0.5593x0.5593 mm |
| Active Display Area(WxH) |
1073.8 × 604 mm |
| Panel Dimension(WxHxD) |
1077.6 x 607.8 x 55.7 mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |

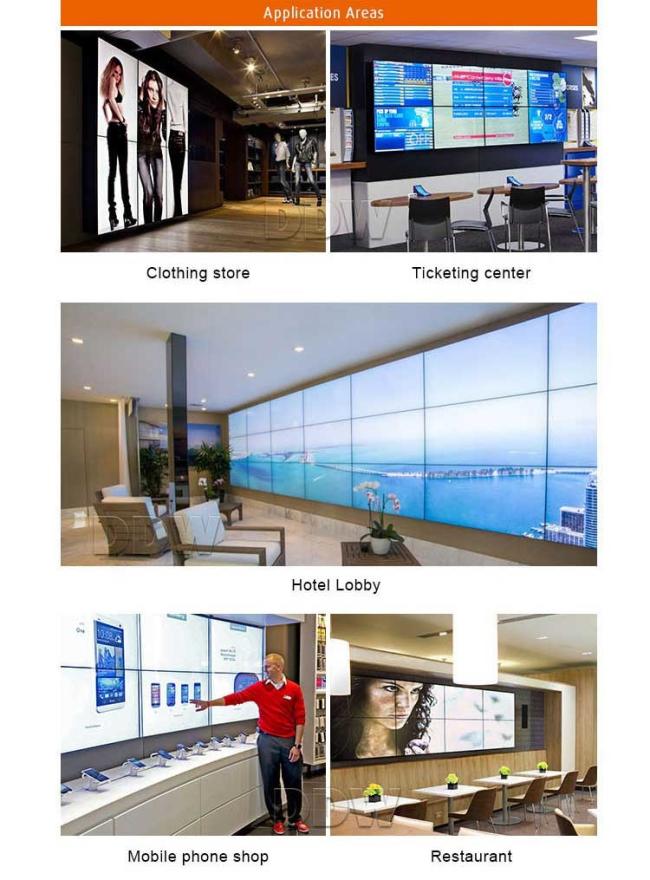

| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Seamless LCD Display Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
