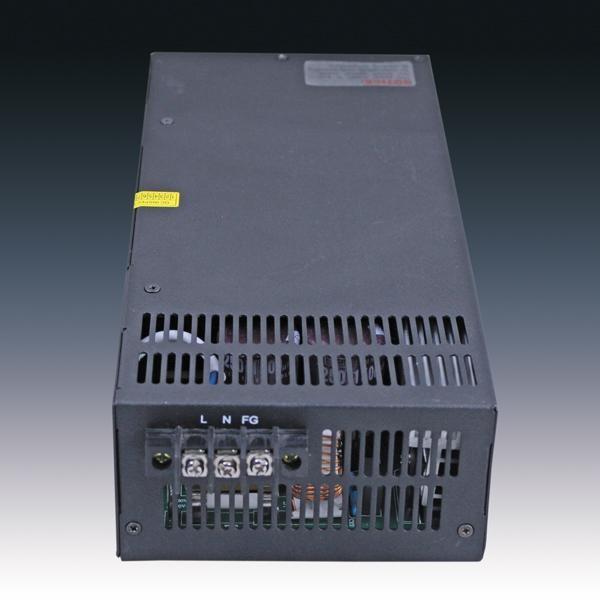

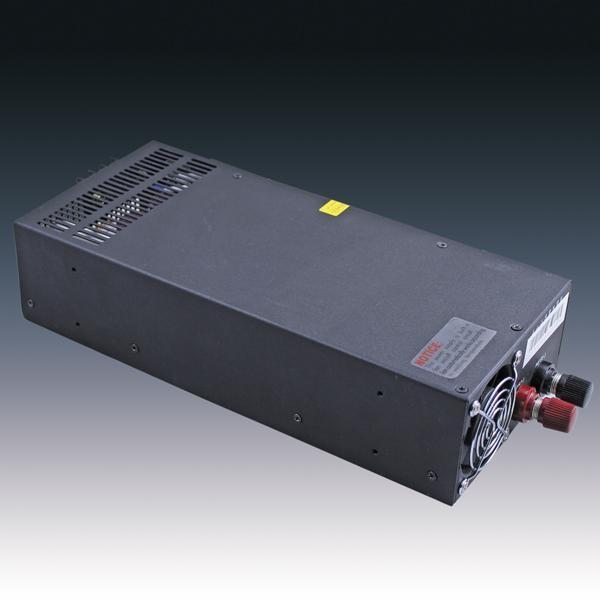

1000W 24V 41.7A 220VAC to 24VDC Power Supply SE-1000-24
Price:
$60.00-$80.00
MOQ:
100pcs
Delivery Time:
3-5days
Brand:
BTB
Product Description
1000W 24V 41.7A 220VAC to 24VDC Power Supply SE-1000-24
Detailes:
| MODEL | SE-1000-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 41.7A | |
| CURRENT RANGE | 0~41.7A | |
| RATED POWER | 1000.8W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 22~27.5V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by TB2 |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88% | |
| AC CURRENT (Typ.) | 17.5A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ.) | 35A/115VAC 55A/230VAC | |
| LEAKAGE CURRENT | <2.5mA / 240VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% rated output power |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 28~32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 70°C ±5°C (TSW1) detect on heatsink of power transistor | |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FUNCTION | DC_OK SIGNAL | PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V |
| REMOTE CONTROL | RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/°C (0 ~ 50°C ) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH | |
| OTHERS | MTBF | 251.6K hrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | 278*127*63.5mm (L*W*H) | |
| PACKING | 2.5Kg; 6pcs/16Kg/1.38CUFT | |
Product Description
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
Credit is the basis , Quality is the first
Power adapter ,Charger ,Power supply Manufacture
Phone : +86 13412619588
Wechat:beryl18
skype:beryl--qin
www.btbadapter.com
