Ink Temperature Control system and Dampening Solution Circulator for Komori KBA Harris Roland Akiyama Mitsubishi GOSS
Price:
Negotiable
MOQ:
ONE SET
Delivery Time:
15 WORK DAYS
Brand:
REX
Product Description

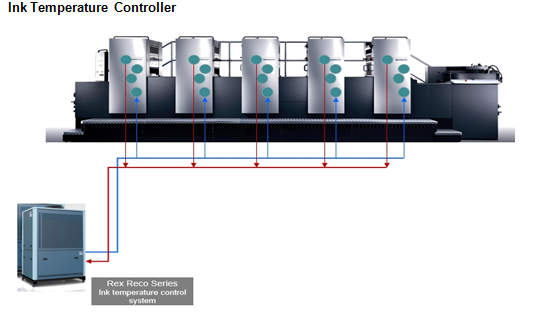

Dampening Solution Circulator and ink Temperature Control system for Komori KBA Harris Roland Akiyama Mitsubishi GOSS printing machine
Ink Temperature Controller Reco100
| Defined mechanical, electrical and fluid interfaces | 380v 50Hz 3PH |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Environment | |
| Operating temperature | +10~40℃ |
| Temperature for transport | Up to 65 °C |
| Operating relative humidity (not condensing) | 30 – 95% |
| Geographic height with air cooled refrigeration unit | Under 3000m |
| System Specification | |
| Temperature range of the dampening solution | 25℃ |
| Cooling Capacity | - |
| Refrigerant | R22, R134a, R407c, R404a |
| Flow Rate | - |
| Water quality fresh water | 8dH |
| Water temperature fresh water | Max. 25°C |
| Dimension (mm) | ≤L1350×D850×H1730 |
| Net Weight(KG) | 280KG |
| Gross Weight(KG) | 300KG |
Ink Roller Temperature Control System Reco150
| Items | Value we are offering |
| completely pre-assembled, wired and tested | Power Supply; Water Supply |
| mechanical, electricaland fluid interfaces | 380v50Hz 3PH |
| Operating Voltage | 361V~415V 50Hz 3ph |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Operating temperature | -5~40℃ |
| Operating relative humidity | 30 - 95% |
| Temperature range for water feeding | 10~30°C (setting 25℃ in the factory) |
| Cooling capacity | 10748kcal/h R134a |
| Flow rate | ≥6T/H |
| Water quality fresh water | 8-14°dH |
| Water temperature fresh water | Max. 25°C |
| Dimension | L1550×D850×H1700 |
| Net Weight | 320Kg |
| Gross Weight | 350Kg |
The ink tempersture control system and Dampening Solution Circulator could be chosen as followings:

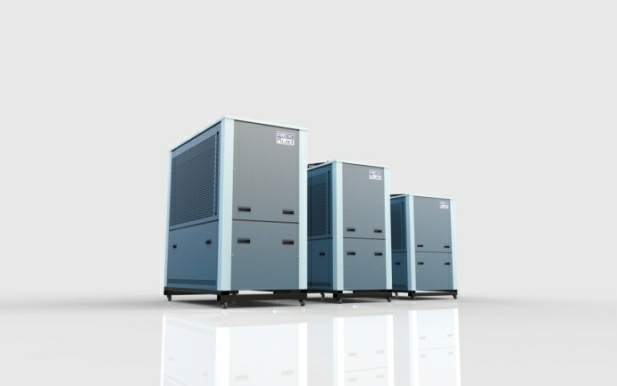

The photo of the ink tempersture control system :
