Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum

Name: Free Shipping KM-393 Single Axis Manual Lock Hole Copy Milling Machine for Aluminum
Brand: KM HARDWARE ASIA LIMITED

Price Negotiable

Price: 2280

MOQ: 1 pcs

Delivery Time: 5-8 work days

Brand: KM

Product Description

Specifications

1. copy milling window lock hole vertical slotting
2. fabrication of aluminum window
3. copy template designed

Product Description

1- was equipped with two sets of molds, use 5mm

and 8mm milling cutters, capable of replicating complicated hole to the work piece.

2-Adopts pneumatic clamping operation, high automation.

3-Rotate raising positioning black allow three different kinds of milling depth.

4-All linear movement bearings and milling cutters are from Germany, durable and smooth.

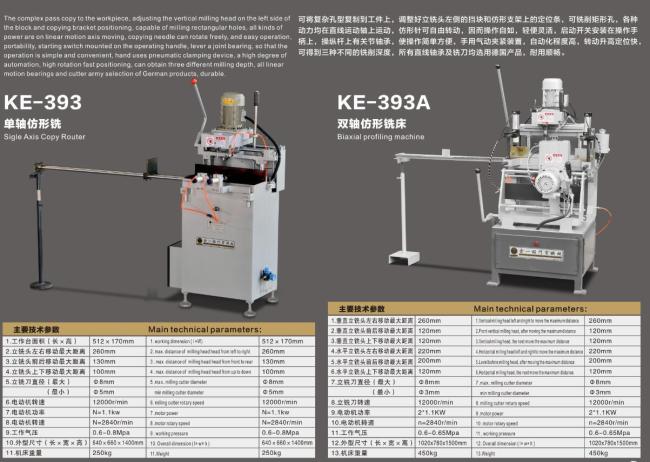

KM - 393 uniaxial copying milling machine

1. The Spanish flat belt transmission

2. Special control handle

3. Taiwan also, low-voltage electrical appliances

4. The KBS linear bearing

5. Germany cutter

6. Joint JELPC pneumatic components

7. CE standard 24 v control circuit

The main technical parameters

1. The table size (length x width) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 512 x 170 mm

2. The vertical milling head left and right moving maximum distance -- -- -- -- -- -- --- -- -- - 260 mm

3. The vertical milling entered, the maximum distance after -- -- -- -- -- -- -- -- -- -- -- -- ----- 130 mm

4. The vertical milling head, the largest mobile distance -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 100 mm

5. End mill diameter biggest -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 8 mm

Minimum -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 3 mm

6. End mill speed -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 12000 r/min

7. The motor power -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- N = 1.1 KW

8. Motor speed -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- n = 2840 r/min

9. Work pressure material cylinder pressure -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 0.6-0.65 Mpa

10. The dimensions (length x width x height) -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - 640 x660x1400mm

11. Weight -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 350 kg

Main features:

1. Use CE standard 24 v control circuit, safe in operation.

2. The special operation handle, solve the problem of most products handle often damage.

MAIN TECHNIQUE PARAMETER

1.	Worktable size (WxH)	512x170mm
2.	Max. distance of milling head from left to right	260mm
3.	Max. distance of milling head from front to rear	130mm
4.	Max. space height of milling head	100mm
5.	Milling cutter diameter	3mm / 5mm / 8mm
6.	Milling cutter rotation speed	12000 rpm
7.	Motor power	1.1 Kw
8.	Motor rotation speed	2840 rpm
9.	Working air pressure	0.6-0.8Mpa
10.	Overall dimension (L×W×H)	640×660×1400mm
11.	Weight 300kg
