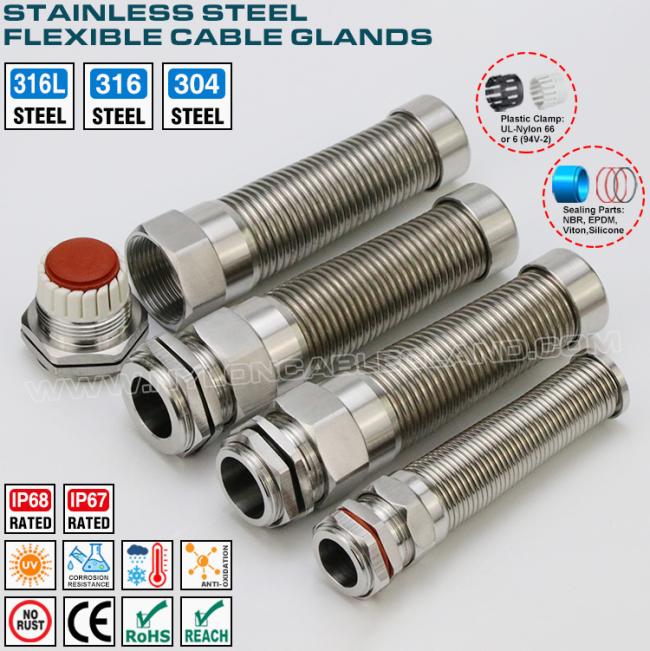

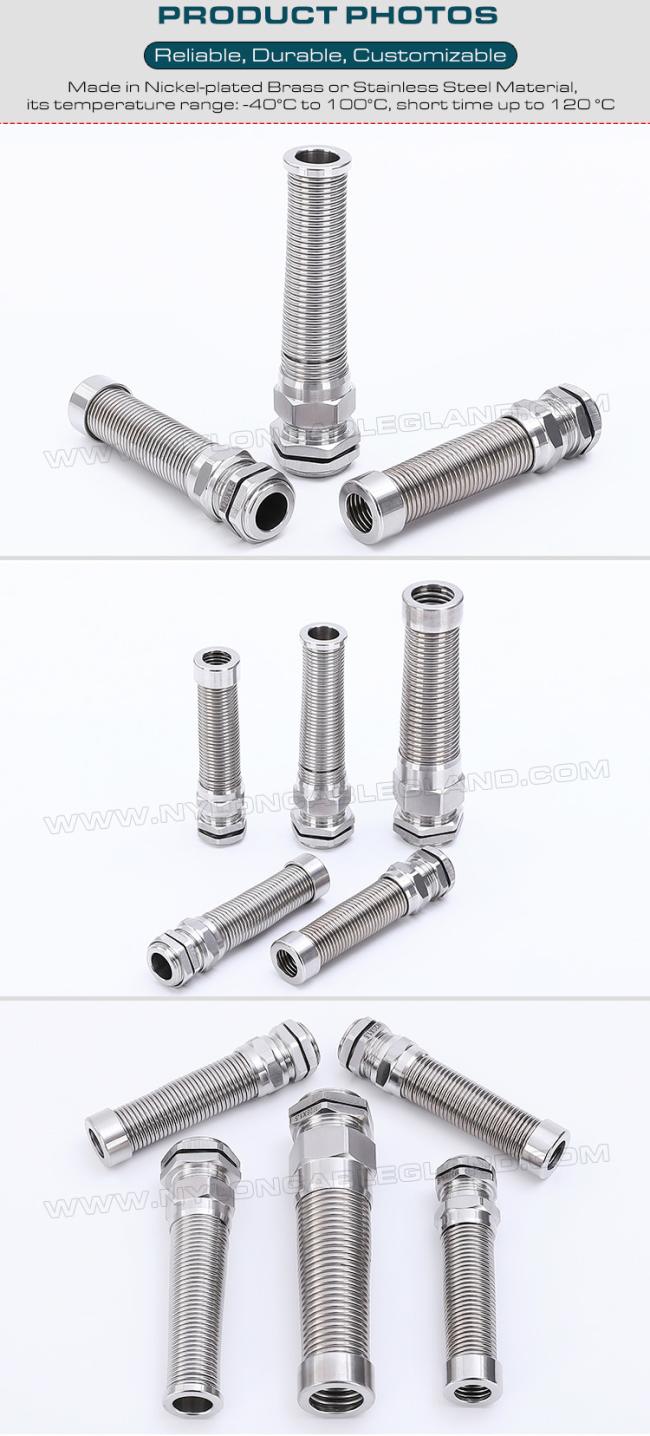

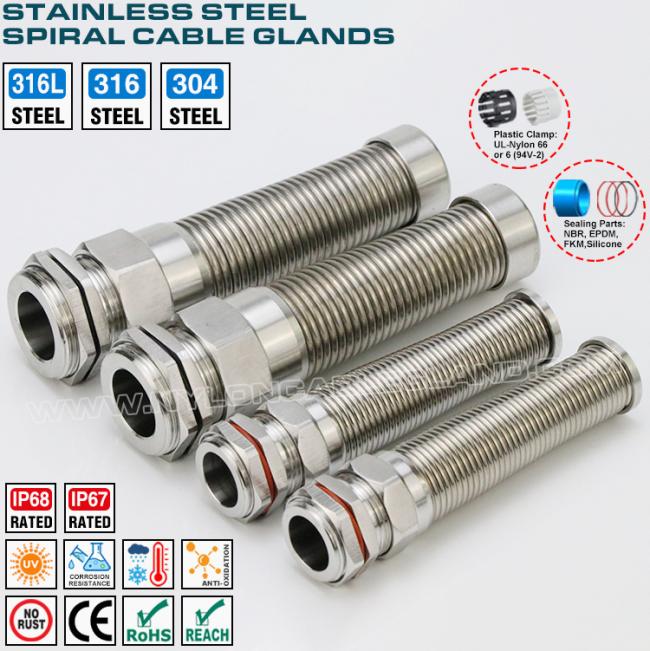

Spiral Metal Cable Glands NPT1/4-NPT3/4 Stainless Steel Flexible Cable Glands, 304, 316 or 316L Type, IP68 Version, NPT Pitch
Description & Application:

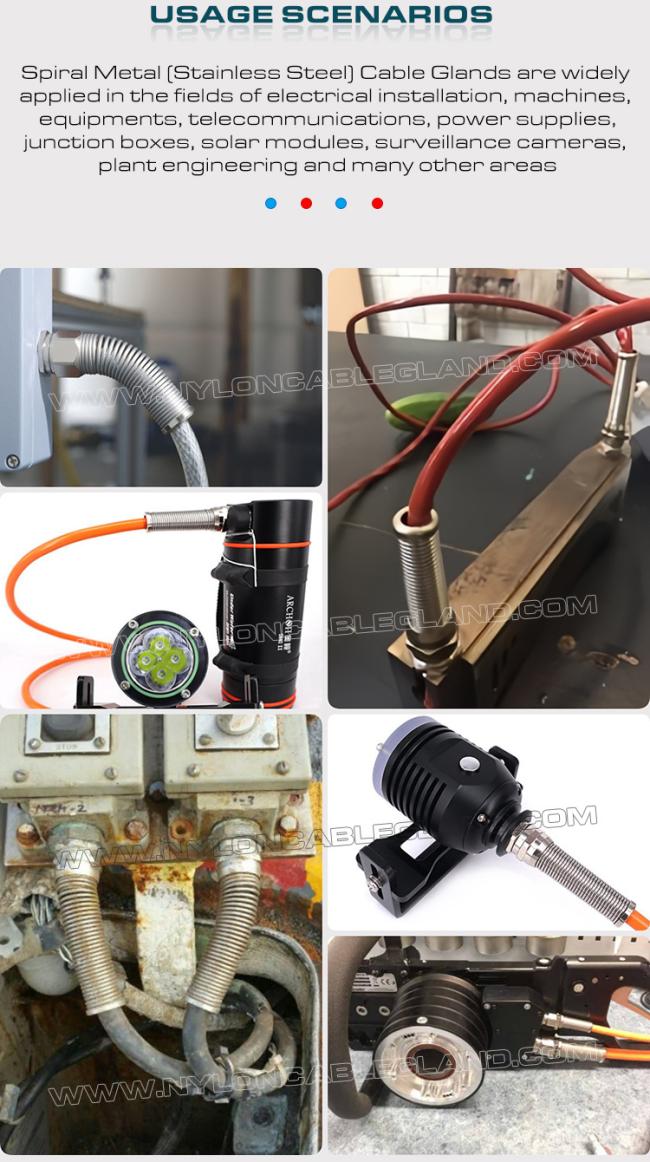

► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.
► Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.
► Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.
► Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.
► New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.
| Brand name: | Factory or OEM |
| Place of origin: | China |

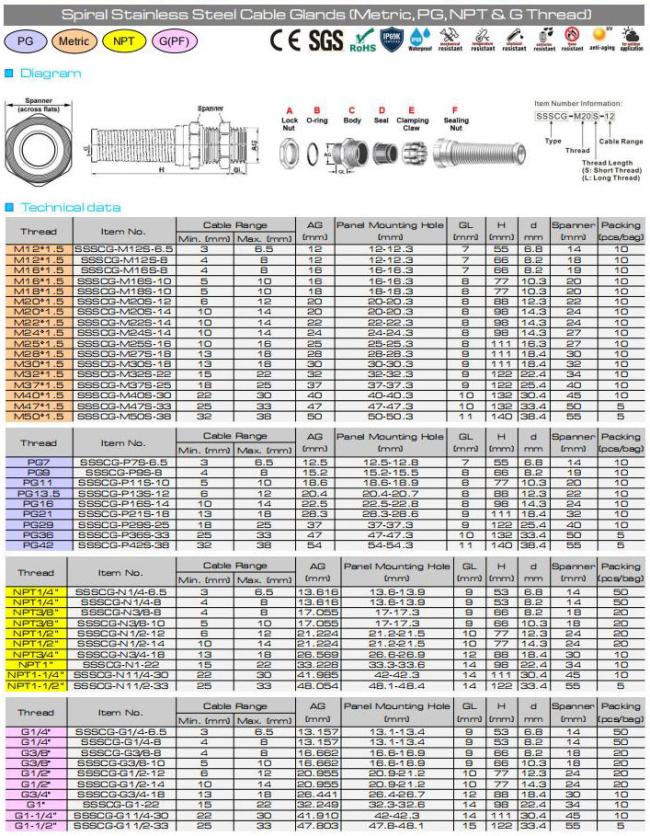

| Specs: | NPT 1/4", NPT3/8", NPT1/2", NPT 3/4" |

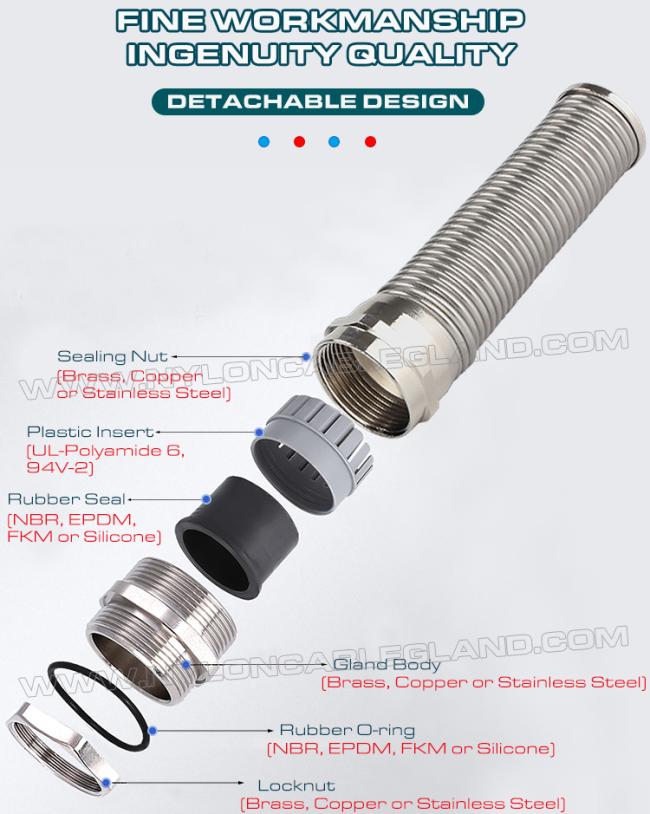

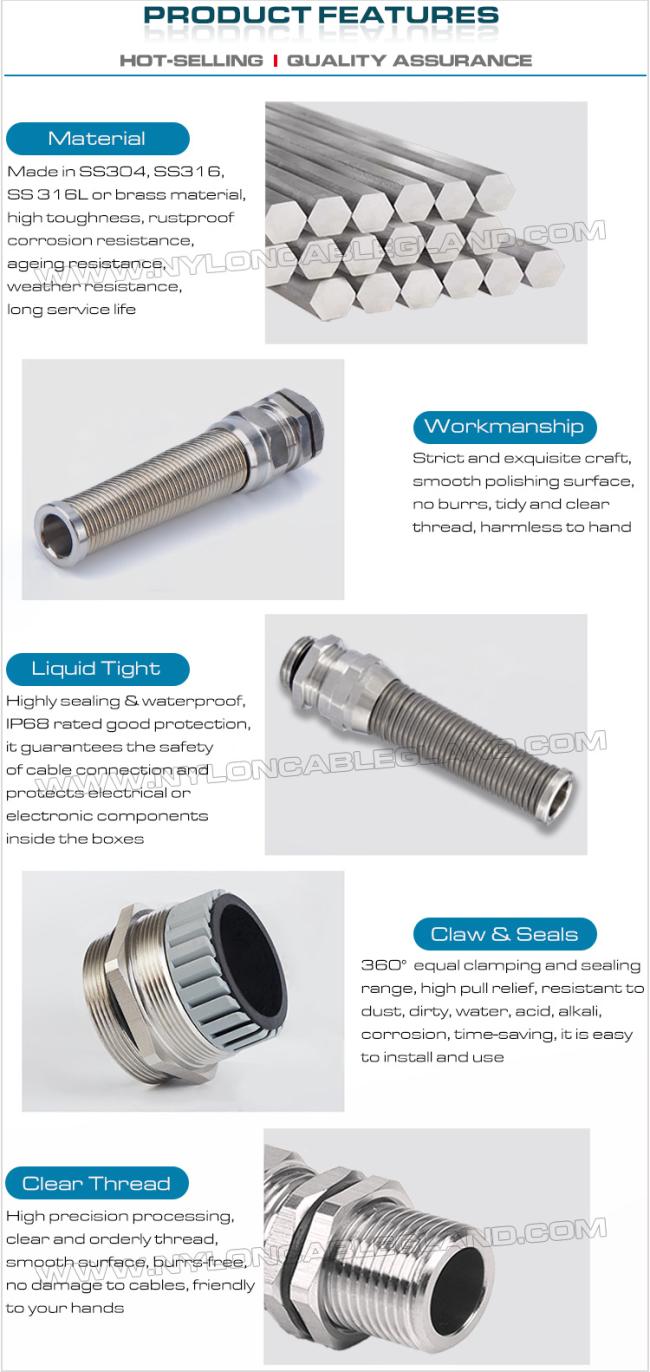

| Material: | Metallic parts are made from stainless steel 304, 316, 316L |
| Plastic insert is made from UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM | |
| Surface: | Polishing threatment |
| Color: | Natural |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproofness: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Standard length |
| Thread type: | According to ANSI/ASME B 1.20.1 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 500,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |

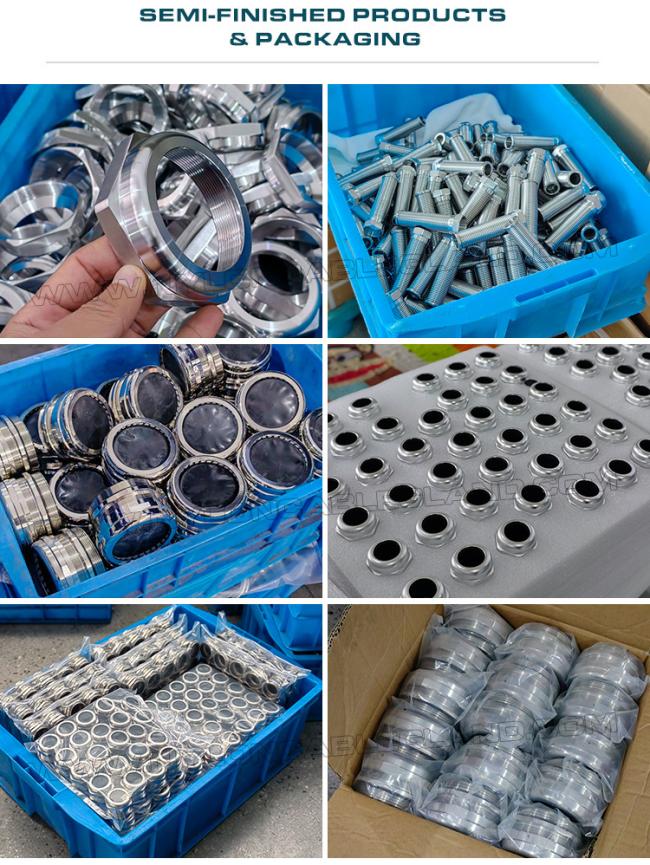

(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested |
