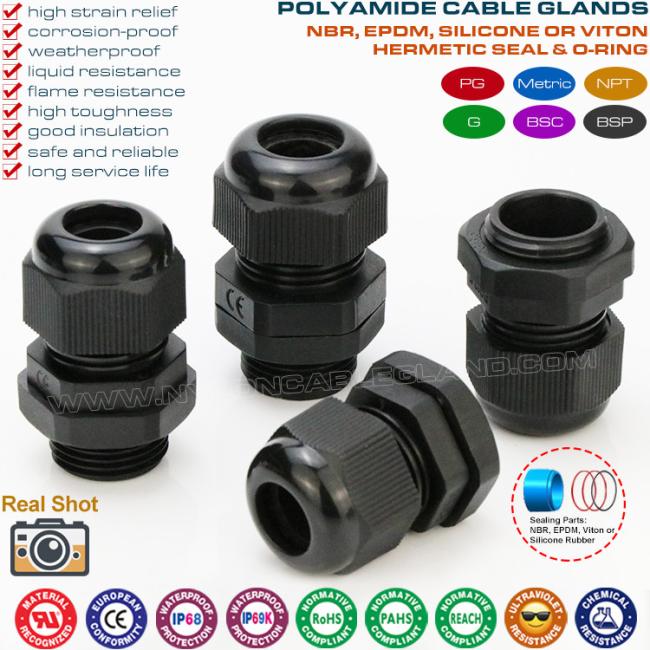

Nylon IP68 Submersible Cable Glands, Plastic Adjustable Cord Grips Waterproof Connectors with BSC & BSP Threads
Price:
at very competitive prices from direct factory
MOQ:
1000 units
Delivery Time:
normally 5-8 days
Brand:
Sino Cable Gland Factory or OEM
Product Description
Applications:
Nylon IP68 Submersible Cable Glands, Plastic Adjustable Cord Grips Waterproof Connectors with BSC & BSP Threads are widely applied for connecting and sealing cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
How to use:
Mount cable gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position.
Our advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.
About us:
We are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export Cable Glands, Cable Ties, Pipe Fittings and other accessories, etc. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!!
Discriptions:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Nylon IP68 Submersible Cable Glands, Plastic Adjustable Cord Grips Waterproof Connectors with BSC & BSP Threads |
| Sizes available: |
* BSC1/2", BSC5/8”, BSC3/4", BSC1", BSC1-1/4", BSC1-1/2", BSC2" |
| Raw material: | UL-approved new Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (94V-0 material is optional) |
| NBR or weatherproof EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Normal thread is available |
| Thread system: |
BSC: according to the standard BS 811 BSP: according to the standard BS 21 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃ Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 1000 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
