IP68 Watertight PG7~PG48 Nylon Insulated Electrical Cable Glands with Integral PG Screw Thread
Price:
very competitive prices
MOQ:
500pcs
Delivery Time:
normally 5-8 days
Brand:
Sino Cable Gland Factory
Product Description
IP68 Watertight PG7~PG48 Nylon Insulated Electrical Cable Glands with Integral PG Screw Thread
Applications:
Widely applied for connecting and securing cables or wires to provide effecitve protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, machineries, telecommunications, wireless networking ODUs, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
About us:
Founded in 2005, we are one of the most professional manufacturer of Cable Glands, Conduit Fittings, Cable Ties in China, we have had more than 18 years of rich production experience and technology in the industry of cable accessories. With strong strength, reasonable prices, complete specs and good services, our products have been exported to more than 100 countries and regions and have won good reputation among customers. Welcome customers from home and abroad to work with us!
Our advantages:
(1) Direct factory who sell products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Different cable glands can be customized as per customer's request.
(8) OEM services can be provided.
Descriptions:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Watertight PG7~PG48 Nylon Insulated Electrical Cable Glands with Integral PG Screw Thread |
| Sizes available: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| Raw material: | UL-approved Polyamide 66, 94V-2 for Sealing Nut, Locknut & Body (contact us for 94V-0 material). |
| Weatherproof and anti-aging EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound can firmly hold and protect cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread and long thread are available |
| Thread system: | According to Germany standard DIN40430 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM service: | Yes, available |
| Supply capability: | 5,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |

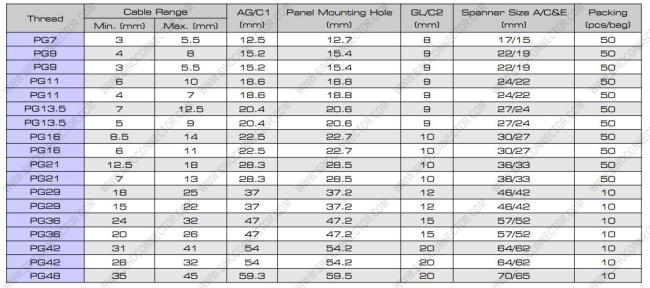

Specifications:
Pictures:
