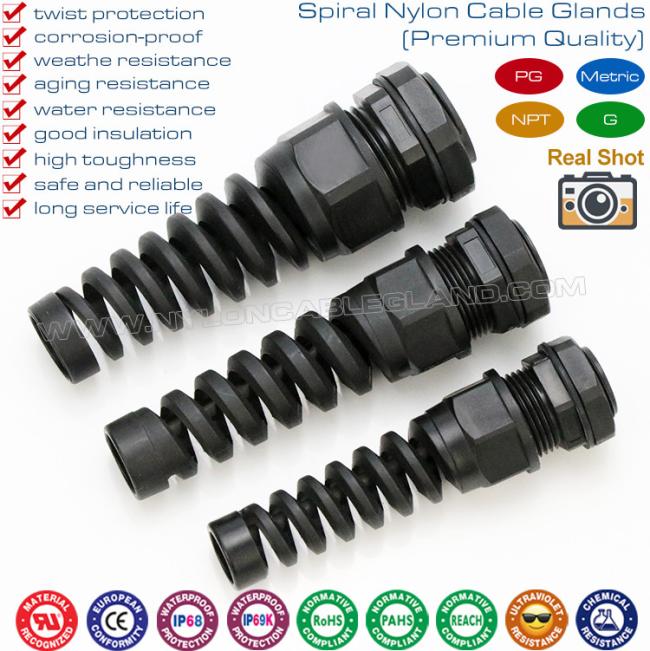

Spiral PG Watertight Cable Glands and Metric Hermetic Cable Glands with Strain Relief (Standard Type & Divided Type)
Price:
at very competitive prices from direct factory
MOQ:
500 units
Delivery Time:
normally 5-8 days
Brand:
Sino Cable Gland Factory
Product Description
Features & Applications:
Designed with anti-bending spiral spring & wide cable clamping range, Spiral PG Watertight Cable Glands and Metric Hermetic Cable Glands with Strain Relief (Standard Type & Divided Type) offer an excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. With the characteristics of strong tensile strength, high sealing & anti-bending performance, good security and stability, PG & Metric Spiral Strain Relief Cable Glands are widely applied for connecting and fastening cables or wires to provide effective protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Descriptions:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Spiral PG Watertight Cable Glands and Metric Hermetic Cable Glands with Strain Relief (Standard Type & Divided Type) |
| Sizes available: |
* PG7, PG9, PG11, PG13. 5, PG16, PG21 |
| Raw material: | UL-approved new Polyamide 66, flammability 94V-2 for Sealing Nut (Spiral protector), Locknut & Body (contact us for 94V-0 material). |
| Weatherproof and anti-aging EPDM rubber for Seal & Washer | |
| Standard colors: | Light-grey RAL7035, black RAL9005 (available in dark-grey RAL7001, blue RAL5012, orange RAL6018, red RAL3031, green RAL2004 & white RAL9010, such special colors can be customized according to customer's request) |
| Main advantages: | Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong strain relief and wider clamping range, the anti-vibration sealing nut making a "click" sound can firmly hold and protect cables from becoming loose during the operation. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, PAHS, REACH, SGS, IP68 |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the Washer) |
| Thread lengths: | Short thread and long thread are available |
| Thread system: |
PG: According to Germany standard DIN40430 Metric: according to the standard EN60423 |
| Operation temp.: |
Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| Quality grade: | High quality can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 100pieces /color box, special packing can be customized as requested |
