IP68 Watertight Metallic Dome Head Cable Glands Waterproof Connectors with PG & Metric Male Threads
Price:
at very competitive prices from direct factory
MOQ:
500 units
Delivery Time:
normally 5-8 days
Brand:
Sino Cable Gland Factory
Product Description
Application Areas:
With high impact resistance, wide clamping range, optimum strain relief, high sealing performance & high security and stability, IP68 Watertight Metallic Dome Head Cable Glands Waterproof Connectors with PG & Metric Male Threads are widely applied in the fields of electrical and electronic technologies, telecommunications, wireless networking ODUs, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, machineries, meters and instruments, etc.
Our Advantages:
(1) Direct factory selling products at factory prices.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our glands reach IP68 liquid tight protection.
(5) Timely delivery and good service are our principle.
(6) Free samples available.
(7) Special cable glands can be customized as per customer's samples or drawings.
(8) OEM services can be available.
About Us:
Founded in 2005, we are one of the most professional manufacturer of Cable Glands, Conduit Fittings, Cable Ties in China, we have had more than 18 years of rich production experience and technology in the industry of cable accessories. With strong strength, reasonable prices, complete specs and good services, our products have been exported to more than 100 countries and regions and have won good reputation among customers. Welcome customers from home and abroad to work with us!
Product details:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | IP68 Watertight Metallic Dome Head Cable Glands Waterproof Connectors with PG & Metric Male Threads |
| Sizes available: | * PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48. * M8, M12, M14, M16, M18, M20, M22, M24, M25, M27, M30, M32, M36, M37, M40, M42, M47, M48, M50, M54, M56, M60, M63, M72, M75, M76, M80, M88, M90, M100, M110, M120, M125, M150. |
| Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Certifications: | CE, ROHS, REACH, IP68, IP69K |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: |
PG: According to Germany standard DIN40430; Metric: according to the standard EN60423 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |

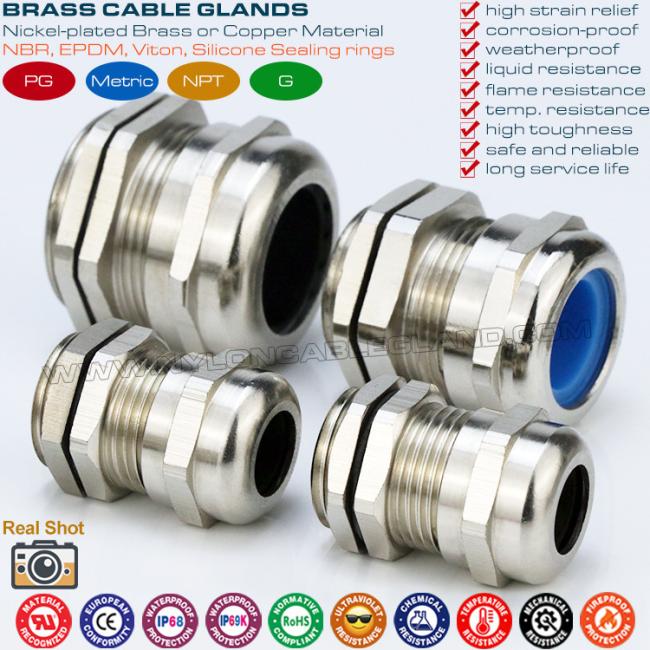

Product Photos:
