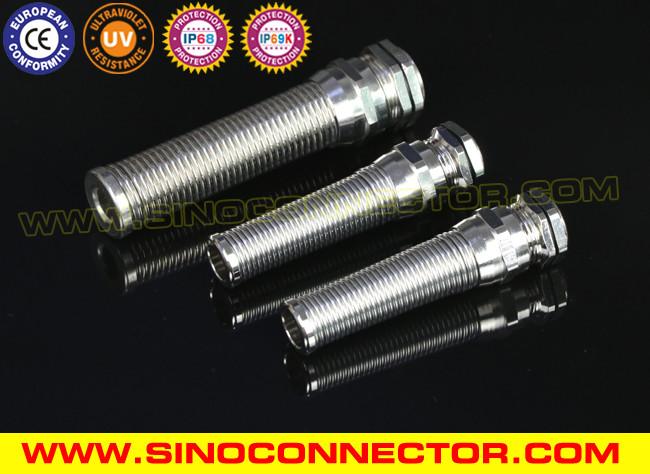

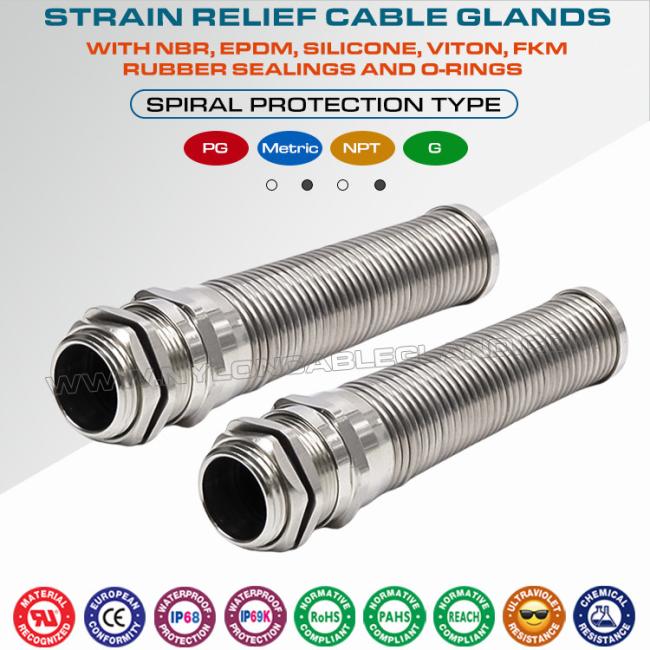

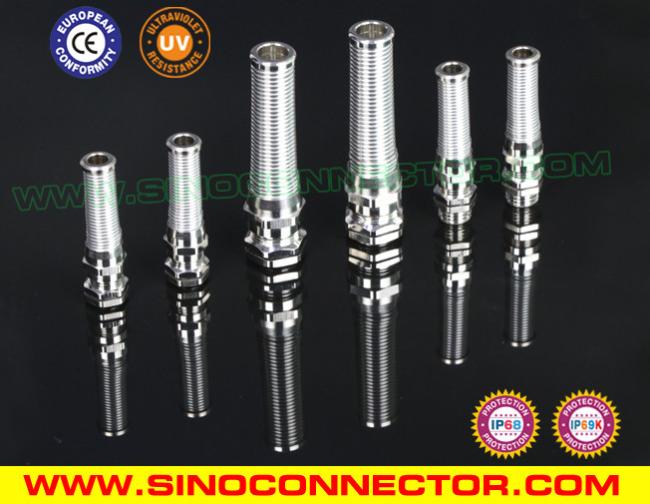

Brass PG Thread IP68 Metallic Cable Glands (DIN 40430) PG7-PG21 with Spiral Strain Relief
Price:
at the most favorable prices from direct factory
MOQ:
100 pieces
Delivery Time:
normally 8-10 days
Brand:
Sino Cable Gland Factory
Product Description
Functions & Applications:
Brass PG Thread IP68 Metallic Cable Glands (DIN 40430) PG7-PG21 with Spiral Strain Relief provide excellent cable protection against excessive twist at the bending point to reduce the risk of break to avoid electric leakage. Having the key features of strong tensile strength, high sealing performance, good security and stability, sustainable submersion and long service life, they are widely used for connecting and fastening flexible cables on electrical equipments, moving machineries, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
Our Advantages:
(1) Competitive prices from direct factory.
(2) All our products are friendly to earth (green products).
(3) High quality ensures long service life for indoor and outdoor applications.
(4) All our cable glands have a waterproof protection up to IP68.
(5) Timely delivery and good services are our principle.
(6) Free samples are available on request.
(7) Special cable glands will be custom-made according to customer's original samples or drawings.
(8) OEM services can be available.
Product Details:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Brass PG Thread IP68 Metallic Cable Glands (DIN 40430) PG7-PG21 with Spiral Strain Relief |
| Sizes available: | PG7, PG9, PG11, PG13.5, PG16, PG21 |
| Raw material: | Nickel-plated Brass for Locking Nut, Sealing Nut & Body |
| UL-approved nylon 66, 94V-2 for Clamping Claw | |
| NBR for Seal & O-Ring (available in weatherproof EPDM or Silicone rubber) | |
| Standard colors: | Metallic silver color |
| Certifications: | CE, ROHS, REACH, IP68, IP69K |
| IP protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread lengths: | Short thread & long thread are available |
| Thread system: | According to the standard DIN 40430 |
| Operation temp.: | Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 3,000,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Free samples available upon request |
| Delivery time: | Normally 5-7 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packing: | 100 pieces / bag, 50pieces /color box, special packing can be customized as requested |
Product Specs:
| Thread | Cable Range | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | Packing (pcs/bag) | |
| Min. (mm) | Max. (mm) | ||||||||
| PG7 | 3 | 6.5 | 12.5 | 12.7 | 5 | 55 | 6.8 | 14 | 50 |
| PG7 | 2 | 5 | 12.5 | 12.7 | 5 | 55 | 6.8 | 14 | 50 |
| PG9 | 4 | 8 | 15.2 | 15.4 | 6 | 66 | 8.2 | 17 | 50 |
| PG9 | 2 | 6 | 15.2 | 15.4 | 6 | 66 | 8.2 | 17 | 50 |
| PG11 | 5 | 10 | 18.6 | 18.8 | 6 | 77 | 10.3 | 20 | 20 |
| PG11 | 3 | 7 | 18.6 | 18.8 | 6 | 77 | 10.3 | 20 | 20 |
| PG13.5 | 6 | 12 | 20.4 | 20.6 | 6.5 | 88 | 12.3 | 22 | 20 |
| PG13.5 | 5 | 9 | 20.4 | 20.6 | 6.5 | 88 | 12.3 | 22 | 20 |
| PG16 | 10 | 14 | 22.5 | 22.7 | 6.5 | 98 | 14.3 | 24 | 20 |
| PG16 | 7 | 12 | 22.5 | 22.7 | 6.5 | 98 | 14.3 | 24 | 20 |
| PG21 | 13 | 18 | 28.3 | 28.5 | 7 | 111 | 18.4 | 30 | 10 |
| PG21 | 9 | 16 | 28.3 | 28.5 | 7 | 111 | 18.4 | 30 | 10 |
