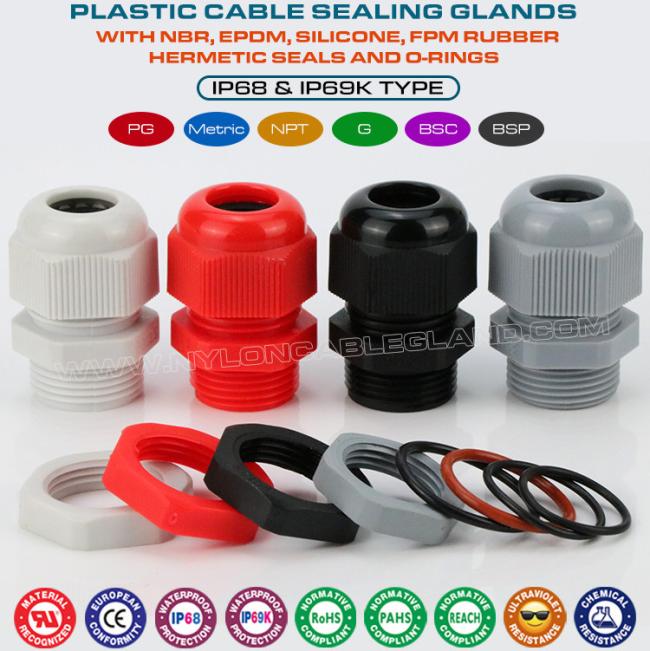

Electrical Cable Gland, Nylon 6, 20mm Metric Thread, M20x1.5, IP68/IP69K, UL94 V-2, para Cable Ø 6-12mm
Price:
most competitive prices from direct factory
MOQ:
500 pieces
Delivery Time:
normally 5-8 days
Brand:
Sino Cable Gland Factory
Product Description
Descriptions and Applications:
A cable gland is a kind of mechanical cable entry device and can be constructed from non-metallic materials or metallic materiales. The M20 plastic cable gland is made from UL-approved polyamide 6 (94V-2) and used for cables from 7mm to 12mm or from 10mm to 14mm in diameter, it fits into sheets or panels up to 5mm thick through a 20.4mm diameter hole, it has a diaphragm-shaped interior closure and hexagonal body and is completed with a locknut and an o-ring. It is available in common colors like light-grey RAL7035, dark-grey RAL7005, silver grey RAL7001, black RAL9005, other colors can be customized as per customers' requirements.
Such nylon cable glands (Euro-Cap) may be used as sealing and termination devices to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Having the features of wide clamping range, high strain relief, waterproof protection and anti-vibration mechanism, they are popularly applicable for solar, wind, oil & gas, pumps, filters, fans, transducers, sensors, scales, flow meters, lighting, motors, encoders, power supplies, antennas, harnesses for pool & spa, car wash, dairy, food & beverage, pharmaceutical, petro, telecom, automotive, traffic, robotics, medical, packaging, automation, marine and many more industries.
A cable gland is a kind of mechanical cable entry device and can be constructed from non-metallic materials or metallic materiales. The M20 plastic cable gland is made from UL-approved polyamide 6 (94V-2) and used for cables from 7mm to 12mm or from 10mm to 14mm in diameter, it fits into sheets or panels up to 5mm thick through a 20.4mm diameter hole, it has a diaphragm-shaped interior closure and hexagonal body and is completed with a locknut and an o-ring. It is available in common colors like light-grey RAL7035, dark-grey RAL7005, silver grey RAL7001, black RAL9005, other colors can be customized as per customers' requirements.
Such nylon cable glands (Euro-Cap) may be used as sealing and termination devices to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Having the features of wide clamping range, high strain relief, waterproof protection and anti-vibration mechanism, they are popularly applicable for solar, wind, oil & gas, pumps, filters, fans, transducers, sensors, scales, flow meters, lighting, motors, encoders, power supplies, antennas, harnesses for pool & spa, car wash, dairy, food & beverage, pharmaceutical, petro, telecom, automotive, traffic, robotics, medical, packaging, automation, marine and many more industries.
Information:
| Brand name: | Sino Cable Gland Factory |
| Place of origin: | Zhejiang, China |
| Product name: | Electrical Cable Gland, Nylon 6, 20mm Metric Thread, M20x1.5, IP68/IP69K, UL94 V-2, para Cable Ø 6-12mm |
| Sizes: | M20x1,5 (Cable Ø 6-12mm & 10-14mm) |
| Materials: | plastic parts: UL-polyamide 66, 94V-2 (contact us for 94V-0 material) |
| sealing parts: Silicone rubber | |
| Colors: | grey RAL7035, black RAL9005, special colors are customizable according to customer's request) |
| Certifications: | CE, ROHS, PAHS, REACH, IP68, IP69K, UV, Halogen Free |
| IP protection: | IP68 / IP69K (when the cable diameter is within the clamping range and mount the O-ring) |
| Thread length: | available in standard thread or extralong thread |
| Thread system: | according to standard EN 60423 |
| Working temperature: | static: -40℃ to +100℃, short-term: +120℃. |
| Quality grade: | high quality version can last 8-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM services: | yes, available |
| Supply capability: | 5,000,000 pieces each month |
| Minimum quantity: | 500 pieces |
| Samples: | free samples are available upon request |
| Delivery time: | normally 5-8 days after confirmation of orders |
| Payment conditions: | T/T, Western Union, L/C at sight |
| Shipment terms: | shipped by courier like EMS / TNT / DHL / UPS / FEDEX or by sea or by air |
| Export packing: | 100 pieces per bag + 100 pieces per color box, |
