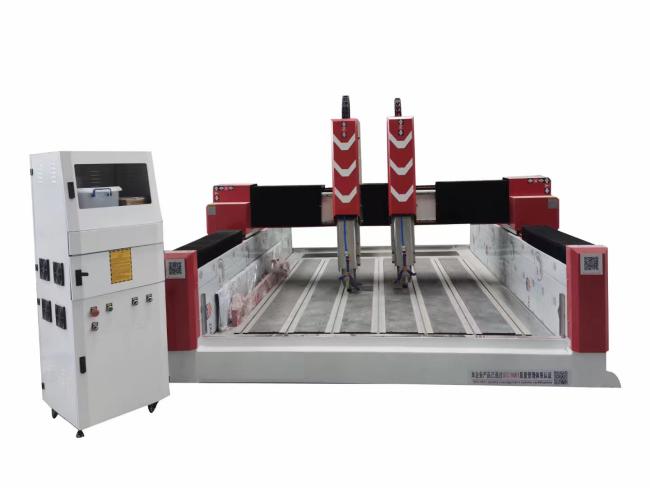

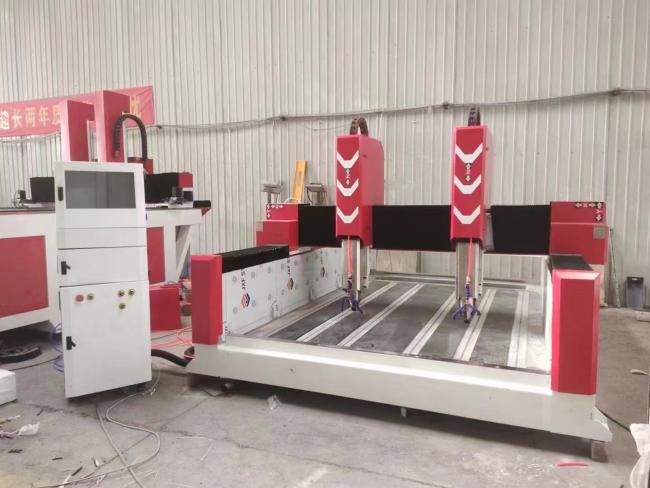

MCUT-1530 Stone Carving Machine for Artificial Stone,Marble,Granite
Gravestone Series Engraving Machine Stone CNC Router MCUT-1530
Application Materials :
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper, wood, MDF, hardwood, plywood and so on.
Application Industries :
Applications:
Advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
| N | parameters description | parameters | |
| X | 1300 mm/1500mm | ||
| 1 | Working zone | Y | 2500 mm/3000mm |
| Z | 300 mm/450mm | ||
| X | Rack gear and pinion drive | ||
| 2 | Transmission systems | Y | Rack gear and pinion drive |
| Z | Ball screw drive | ||
| X | square linear rails | ||
| 3 | Guide rails system | Y | square linear rails |
| Z | square linear rails | ||
| X | Stepper motor/servo motor | ||
| 4 | Drive systems | Y | stepper motor/servo motor |
| Z | stepper motor/servo motor | ||
| Power | 5.5KW/7.5KW | ||
| Speed | 24000rpm | ||
| 5 | Spindle | Cooling type | water -cooling |
| Origin | China | ||
| Collets | ER25 | ||
| 6 | Spindle inverter | RITUO | |
| 7 | Distance from spindle nose to table | >= 200 mm | |
| 8 | Table size | 1680*3000mm | |
| 9 | Max travel speed | >30m/min | |
| 10 | Max engraving speed | >10 m/min | |
| 11 | Resolution | <=0,005 mm | |
| 12 | Cutting Accuracy | <= 0,05 mm | |
| 13 | Repeatability | <=0,03 mm | |
| 14 | Control systems/Operation system | NC studio/DSP hand controller | |
| 15 | software | TYPE3/Artcam /Ucancam /JDpaint | |
| 15 | Power: | AC380V±10% / 50~60Hz | |
| 16 | Machine weight kg | 1500KG | |
