Crossed Roller Slewing Bearing 110.25.823.12 Size 980x714x101mm

Price Negotiable
Price: 1-1000USD/negotiation
MOQ: 2PCS
Delivery Time: 30 days
Brand: JHB or your required
Product Description

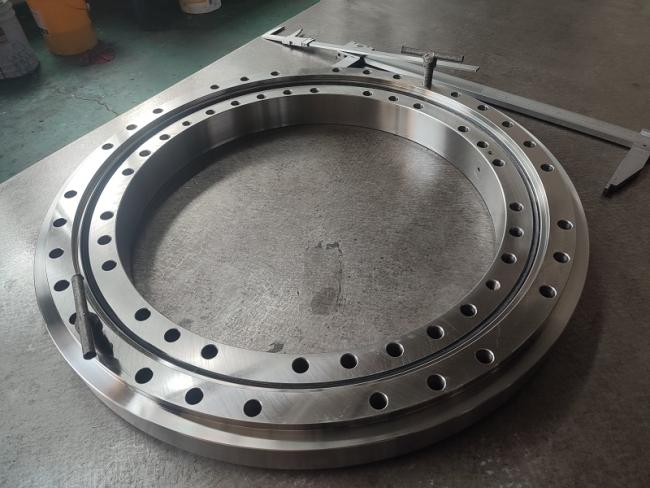

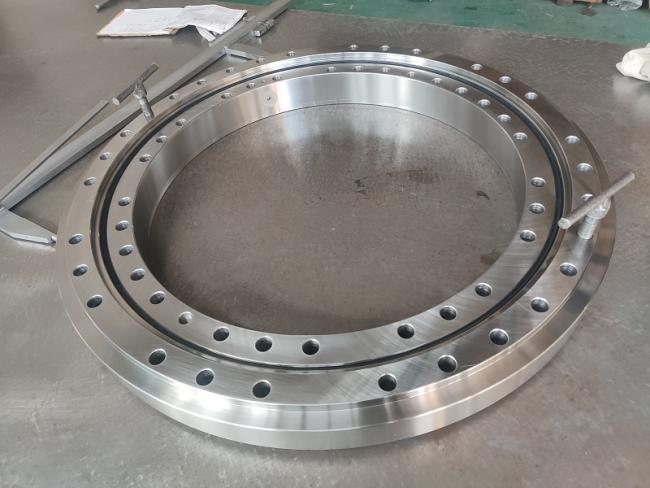

 Crossed roller slewing bearing 110.25.823.12 size 980x714x101mm







The bearing 110.25.823.12 belongs to crossed cylindrical roller turntable bearing that will used for oil petroleum equipment rotary table .It can carry axial and radial direction load.It is a slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers. The fixed term with strong bolt.The full boundary size:980X714X101mm .





Slewing Ring Bearing turntable bearing 110.25.823.12Specification:
Structure: Crossed cylindrical roller slewing ring
1.Bearing Dimensions 980*714*101mm
2.The bearing outer diameter Metric size:980mm
3.The bearing inner diameter metric size:714mm
4.The bearing height metric size:101mm
5.The bearing without teeth
6.Lubrication:oil lubrication
7.The bearing outside diameter inch size:38.58”
8.The bearing inside diameter inch size:28.11
9.The bearing total width inch size:3.98
Material quenching and tempering: HB229~269
Raceway case hardening :HRC55~60
Axial clearance: 0.1~0.22mm
The outer ring hole number:28PCS
The inner ring hole number:28pcs
The bearing rolling :Cylindrical roller
Package Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
Material:42CrMo,42CrMo4V,50Mn



 Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
