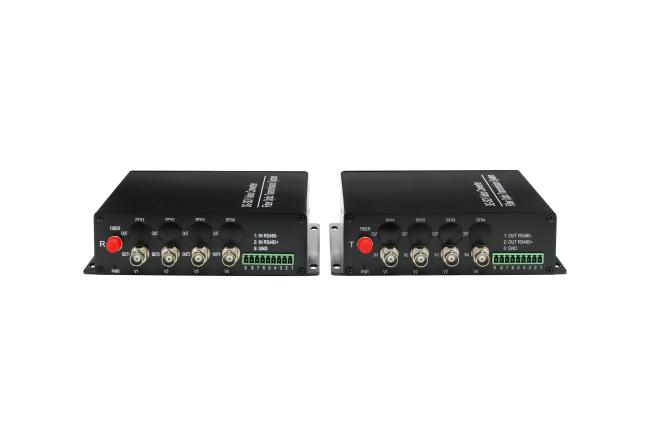

1 Pair Full HD 1080P 3G SDI video to Fiber Converter 4channel
Full HD 1080P 3G SDI to Fiber Converter 4Ch 1080P SDI video,180mm x 123mm x 30mm
Overview:
Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.
Feature:
- all-digital,uncompressed,HD-SDI fiber transmission.
- support 3G/HD/SD-SDI serial video signals
- support common serial rate from 270Mbps to 1.485Gbps
- max serial rate can reach 3.125Gbps
- gigabit fiber transmission,large capacity,easy to upgrade
- surface mount technology
- built-in auto equalizer,clock retiming
- compatible SMPTE259M,292M,344M,ITUserial digital video standard
- Transparent support for any RS232/485/422 communication protocols
Specification:
| Model/Name | HL-4V-20T/R/3D-SDI |
| Quantity/Type | Single Mode, Single Fiber |
| Video port | SD/HD-SDI |
| Transmission Distance | 0m-20Km/30km/40km/60KM optional |
| Fiber Connector | SC/FC |
| Wave Length | 1310nm/1550nm |
| Transmitted power | "-11dbm~-4dbm |
| MaximumReceiving Sensitivity | <-26dbm |
| Signal Type | SD-SDI(270Mbps)/HD-SDI(1.485Gbps) |
| Video Standard | SMPTE259M/292M/344M/ITU |
| DATA comm. method | RS232/422/ RS-485 |
| Digital Audio | 48KHz |
| Bandwidth | (-3db)20Hz-20khz |
| Power Supply | ac220v/50hz |
| Power Consumption | 3~5 Watts |
| Operating Temperature | Operating: -30℃ ~ +75℃ |
| Storage Temperature | Operating: -40℃ ~ +85℃ |
| Relative Humidity | 0~95% RH (Non-condensation) |
| Dimension | 180mm x 123mm x 30mm |
| Weight | 2kg |
Application:
1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed
