FULL/Half - Duplex Operation Mode HD 1080p video to fiber optic converter 20km Distance,Single Fiber Mode
1-Channel HDCVI Video to Fiber Optic Converter
Overview:
HDCVI Fiber to Converter is designed for long-distance optical fiber transmission HDCVI HD composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HDCVI HD composite video.
Can effectively solve the long-distance optical fiber transmission Dahua HDCVI camera signals, including 1280H, 1920H of 1,000,000, 1,300,000, 2,000,000 HDCVI signal can also be transmitted to other technical standards HDCVI same camera signal.
Optical 1280H and 1920H HDCVI support two kinds of high-definition video formats, support for 1280 × 720 and 1920 × 1080 two resolutions, 25,30,50,60 four kinds of frame rate, 1280H / 25f, 1280H / 30f, 1280H / 50f, 1280H / 60f, 1920H / 25f, 1920H / 30f six kinds of high-definition format.
Key Features:
- Support Point-to-Point or Daisy-Chain connection
- Uncompressed Digital Composite Video over one fiber
- Compatible with all PAL, NTSC,SECAM Video Systems
- Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
- Single-Mode Fiber Support for Distances up to 100 km
- LED Status Provide Rapid Indication of Operating Parameters
- No EMI or RFI and no ground loops
- Support Coarse Wavelength Division Multiplexing (CWDM)
- Stand alone
- Produce according to customer's specifications,providing OEM
Technical Indexes:
| Fiber | FC, Single Mode Single Fiber |
| Transmition Distance | 0-120km |
| Wavelength | Transmitter: 1310nm(Tx)/1550nm(Rx) |
| Receiver: 1550nm(Tx)/1310nm(Rx) | |
| Transmitter Input Level | >500mVp-p |
| Receiver Output Level | 1Vp-p |
| Self-adaption cable equilibrium |
1080p: 75-5 coaxial cable,300m
960p: 75-5 coaxial cable,500m
720p: 75-5 coaxial cable,500m
|
| Transmitter Input Return Loss | >15dB |
| Input/Output Impedance | 75Ω |
| Video Physical Interface | BNC |
| Video Channel | 1-Ch~16-Ch |
| Video bandwidth | 50MHz |
| Sampling Bandwidth | 10 bit |
| RS485 | 1-Ch Backward RS485 (Optional) |
| Indicators | OPT, PWR, DATA, VIDEO |
| Power | DC 5V2A |
| Power Consumption | ≤7W |
| Operation Humidity | 10%~90% |
| Operation Temperature |
-30°C~75°C |
| Part Number | Description | Reach |
| HD-TVI-1VF-T/R | 1ch CVI video | 0~20Km |
| HD-TVI-1V1DF-T/R | 1ch CVI video with 1ch data | 0~20Km |
| HD- TVI-2VF-T/R | 2ch CVI video | 0~20Km |
| HD-TVI-2V1DF-T/R | 2ch CVI video with 1ch data | 0~20Km |
| HD-TVI-4VF-T/R | 4ch CVI video | 0~20Km |
| HD-TVI-4V1DF-T/R | 4ch CVI video with 1ch data | 0~20Km |
| HD-TVI-8VF-T/R | 8ch CVI video | 0~20Km |
| HD-TVI-8V1DF-T/R | 8ch CVI video with 1ch data | 0~20Km |

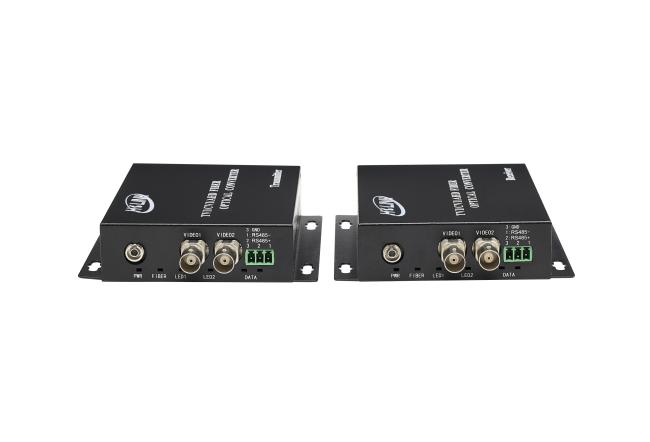

Photo Display
