Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC
Uncompressed 8V HD-CVI Fiber Optic Video Converter, 8 channel Fiber Optic Video,CVI fiber transmission,1080P@60Hz,FC
HDCVI optical transceiver is designed by Ho-link for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high
Reliability. Single fiber can transfer 1-2 CH HDCVI HD compound video at the same time.
HDCVI HD optical transceiver supports two HD video format 1280H and 1920H, supports two resolution ratio 1280×720 and 1920×1080,four frame rate 25,30,50,60, six HD format 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f.
Product Features
*Aluminum alloy shell wall or 1 u case
*Support 1280H and 1920H two HD video format
*All interface adopts three-level anti-static, lightning protection
*Ultra-wide optical dynamic range and advanced adaptive technology , and transmission distance is up to 40 km
*Surface Mount Optical Device, and ensure small volume of products, high stability, high reliability
*Very low electromagnetic interference (EMI),adio-frequency interference (RFI) and a total of ground loop interference
*Rich LED lights, diagnostics indicator
*Plug and play, support hot plug
*The advantage of small dimension,small power,strong anti-interference ability, high fidelity
*Industrial-grade ultra wide temperature range (-40℃~+85℃), adapt to the more environment
*Support user customization and OEM
Description:
| Opitcal: | |
| Wavelength | 1310nm&1550nm |
| Output Power | -6~-2dBm |
| Rx sensitivity | -22dBm |
| Transmission Distance | 9/125u single mode, 20km |
| Optical connector | FC,ST,SC (optional) |
| Video: | |
| Number of Channels | 8 |
| Input/output impedance | 75Ω |
| Physical Port | BNC port |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 60MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 120MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Data: | |
| Data protocol | RS485 442 232 |
| Data rate | 0~200 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
| Other: | |||
| Power | DC5V 2A | ||
| Power Consumption | ≤7.5W | ||
| Temperature | -30ºC ~75ºC | ||
| Humidity | 10%~90% RH | ||
| Installation | Wall mount | ||
| MTBF | ≥ 100000Hours | ||
| unit | pair | ||
Delivery
1. Method of shippment
The goods will be sent by International express, such as DHL/Fedex/UPS/TNT. It takes 3~7 days!
2. Delivery time
Sample: 2 days
Order: Normal 3~5 days
Mass production: It depends on the quantity and the season when you order. Please contact LISA to ask the lead time.
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03
Packing list

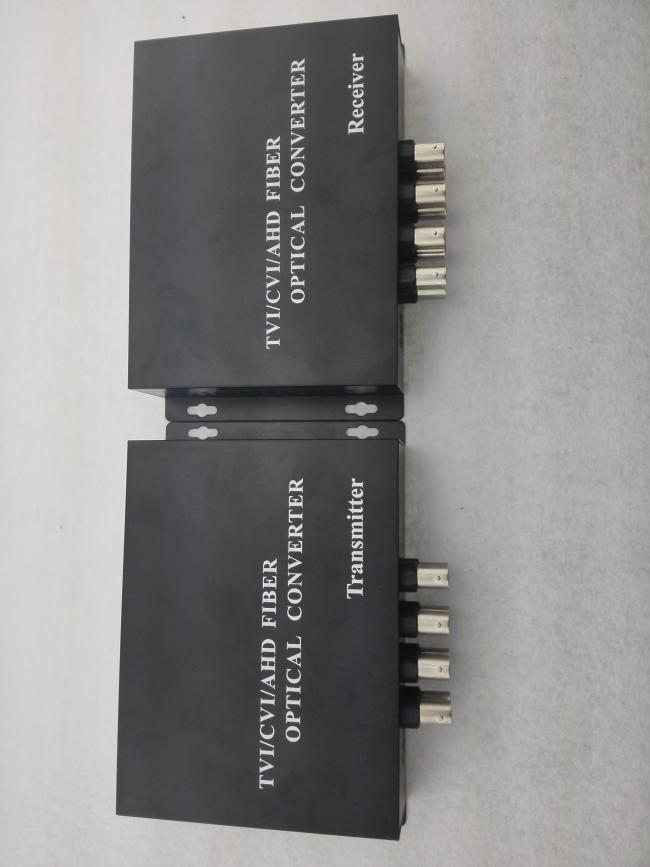

1 Pair (Transmitter & Receiver)
2 x Power supply
1 x User manual
1. All your inquiry about us or our goods will be replied within 24 hours
2. We own professional sales team who can help you in fluent English
3. We have experienced engineer team who can provide solutions for you
4. All video converter is 100% testing before delivery with good quality
5. 3 years warranty with best refund policy, defects will be solved for free
6. Customized service available, welcome your OEM & ODM order
