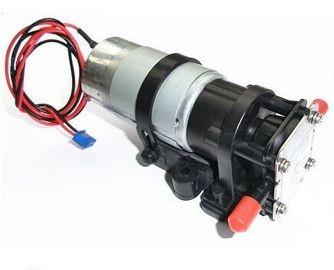

FLOWDRIFT DC Electric Mini Gear Pump KGP-001 Series
FLOWDRIFTTM DC 12/24V Electric Mini Gear Pump KGP-001 FLow 1.0-2.5LPM Quiet Working Food Grade for Hot Water 0-100℃
Features
- Mini DC Motor
- Friction Drive Type
- Lip Seal Design
- Food Safety Materials
- Small Size
- Strong Structure for High Pressure (up to 10 bar)
- Anti-leak with Double Lip Seal System
- Spur & Helical Gear Types
- One Touch Fitting (1/4”)
TECHNICAL DATA
-
Voltage:12/24VDC
-
Max.fluid Temperature:0~105℃
-
Duty Cycle:Intermittent
-
Size:112X70X52mm
-
Port size:42X¢7mm
-
Port type:1/4”
-
Working life:continues working above400hs
-
Applicable Liquid:water,oil or solution
-
Between PH 5~8
-
Following datas are based on test by water
APPLICATIONS
- Bidet
- Water Purifier
- Coffee Vending Machine
- Water Delivery System
- Water Drain Application
- Dehumidifier
- Ice Machine
- Portable air-conditioner
- Food equipment
- Smart closestool
- Centered air-conditioner

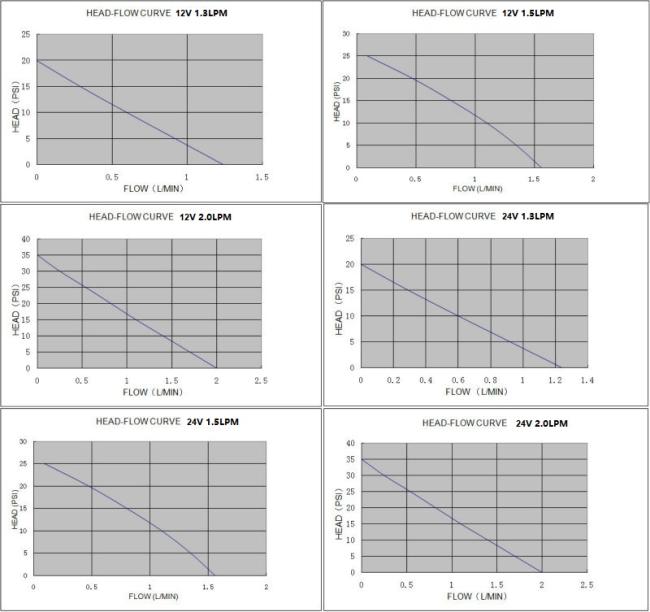

SPECIFICATIONS
| Model | Dimensions mm | Port | Volts VDC | Amps A | Flow L/min | Lift m | Pressure Bar | Noise dB | Weight KG |
| KGP-001 | 107×70×52 | 1/4" | 12/24 | 0.4/0.2 | 1.1±0.1 | 5 |
0.7 (10psi) |
45 | 0.3 |
| KGP-001 | 107×70×52 | 1/4" | 12/24 | 0.6/0.3 | 1.3±0.2 | 7 | 1.1 (15PSI) | 50 | 0.3 |
| KGP-001 | 107×70×52 | 1/4" | 12/24 | 0.8/0.4 | 1.5±0.2 | 8 | 1.5 (20PSI) | 55 | 0.3 |
| KGP-001 | 107×70×52 | 1/4" | 12/24 | 1.0/0.5 | 2.0±0.2 | 12 | 2.0 (30PSI) | 60 | 0.3 |
| KGP-001 | 107×70×52 | 1/4" | 12/24 | 1.2/0.6 | 2.5±0.2 | 15 | 2.5 (35PSI) | 65 | 0.3 |
Remark:1.GPM:gallon/minute, L/min:litre, PSI:pound/squareinch;
2.Conversion:1gallon=3.785 litres, 1Mpa=145PSI=10.2kg/cm2

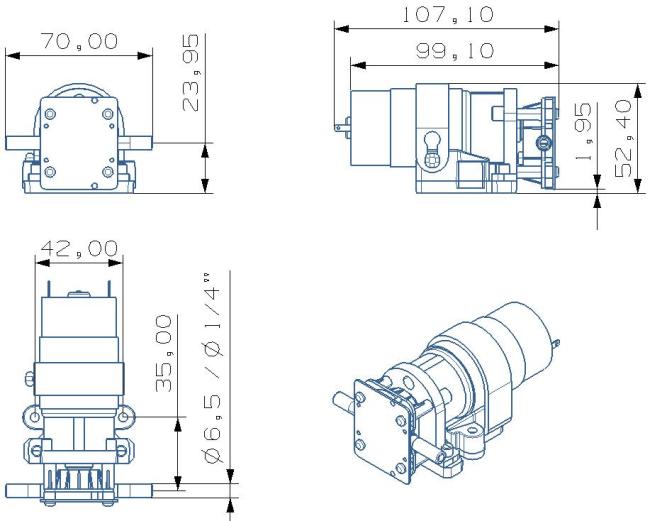

DIMENSIONS
CHEMICAL RESISTANCE
| Chemical Resistance Code | Max Temperature Resistance Code |
|
A —— Excellent B —— Good C —— Ordinary × —— Unacceptable - —— Unusable |
1 —— 20℃(68F) 2 —— 40℃(104F) 3 —— 60℃(140F) 4 —— 80℃(176F) 5 —— 100℃(212F) 6 —— 120℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100% | B2 | A4 | A4 | - | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | - | |
| 30% | C2 | A6 | A4 | - | B3 | - | ||
| 60% | X | A6 | A4 | - | C2 | - | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | - | - | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | - | |
| 50% | A3 | A6 | X | B1 | A4 | - | ||
| Bromine Water | C1 | A3 | A2 | - | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Ketone | A2 | A6 | X | - | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | - | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | - | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | - | X | A4 | ||
| Xylene | X | A6 | B1 | - | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | - | X | A5 | ||
| Oleum | X | A6 | A4 | - | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | - | ||
USAGE SCOPE
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
